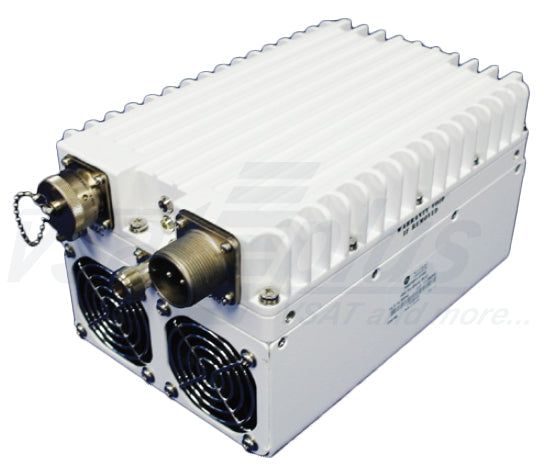

Norsat MEDIAN Series 16W Standard Ku-Band BUC

Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series has been designed with both performance and economy in mind, making it ideal for VSAT applications where size, weight and power constraints are not as stringent.


FEATURES

  • Model MEDIBKU016S
  • Output frequency (MHz) 14.0 – 14.5 GHz
  • L.O. frequency (GHz) 13.05 GHz
  • Input frequency (MHz) 950 – 1450 MHz


MECHANICAL DIAGRAM

Norsat MEDIBKU016 MEDIAN Series 16W Standard Ku-Band BUC

RF Specifications

Output Power (P1db) 42 dBm min
External Reference 10MHz
Reference Power Level -5 dBm to +5dBm
Phase Noise (SSB) -73 dBc/Hz at 1 KHz
-83 dBc/Hz at 10 KHz
-93 dBc/Hz at 100 KHz
-103 dBc/Hz at 1 MHz
Gain 65 dB nominal
Gain flatness +/- 1.5 dB over full std band
+/- 2.0 dB over full ext band
+/- 0.5 dB over 36 MHz
Gain variation over temperature +/- 1.5 dB
Gain variation over 24hrs +/-0.5 dB max at constant temp
Output Spurious -55 dBc max
IM3 25 dBc at 3 dB back-off from rated
Gain Adjustment Range 20 dB

Interfaces

Input VSWR 1.5 : 1
Output VSWR 1.25 : 1
Input Connector Type-N, female
Output Connector WR75-G (grooved)

Environmental & Physical

Temperature (operational) -30°C to +55°C
Humidity (operational) IP65
Dimensions (L x W x H) 206 x 136 x 117 mm
Weight 4.5 kg

Power

Power requirements +36 to +72V, 48 VDC nominal
48 VDC over IFL optional
Power Consumption 130W at rated power
115W at 3 dB back-off from rated

Monitor & Control

M&C Interface RS-232 / RS-485 / Ethernet
M&C Connector 1PT02E-14-19P (MS3112)
LED Indicators Red, Yellow
