Norsat Ku-Band OMT Transmit Reject Filter – Compact

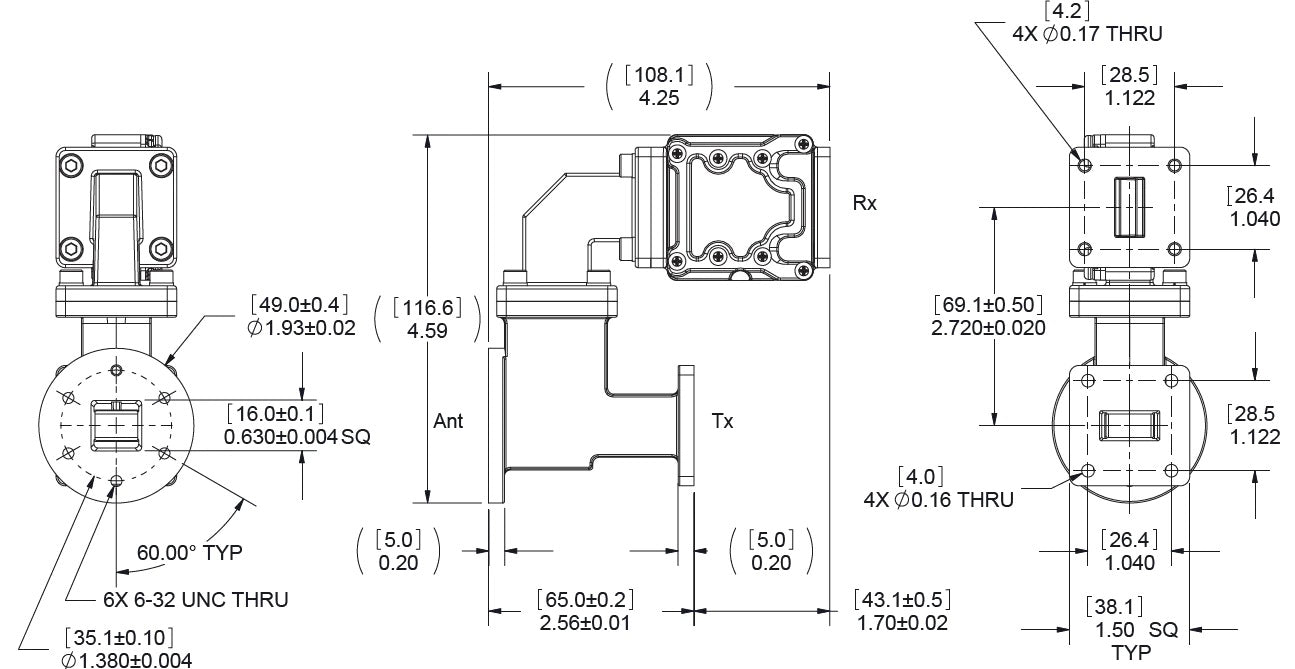

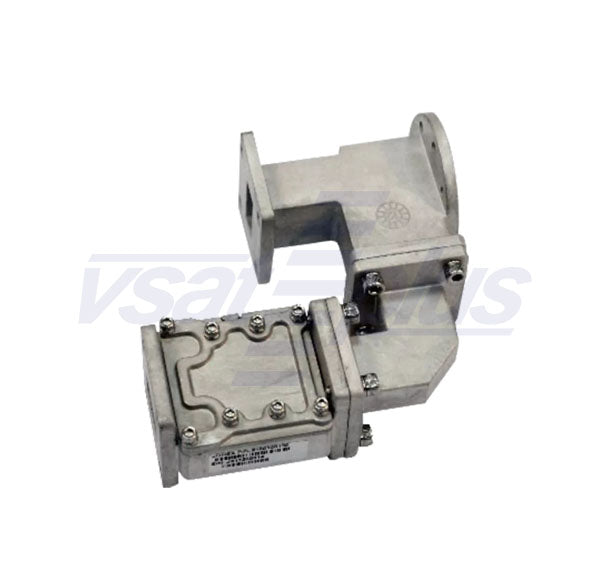

This is a highly integrated three port assembly, combining an OMT with a transmit reject filter and elbow. It is small, lightweight, easy to install and is aesthetically appealing.

The OMT is designed for linear orthogonal polarization. The combined OMT and filter assembly provides very high isolation and is suitable for a large variety of applications in VSAT ground terminals.

The unit has a WC 75 flange at the feedhorn port, and WR 75 cover flanges at the transmitter LNB ports.



Waveguides:
  Feedhorn port

  Transmitter port

  LNB port



WC 75 with threaded holes
WR 75 with through holes
WR 75 with through holes

Frequency:
 Transmit

  Receive



1.2:1
1.3:1

VSWR:
 Transmit port

  Receive Port



1.2:1
1.3:1

Cross Polarization:
 Transmit

  Receive



35 dB
35 dB

Insertion Loss:
 Tx Prot to Rx Port

  Rx Port to Feedhorn Port



0.4 dB
0.4 dB

Isolation:
 Tx port to Rx port at Tx frequency



75 dB

Maximum Input Power:
  Tx port to feedhorn



50 dB

Other:
 Weight

 Operating temp.



0.36 Kg
-40 to +75 degree C
