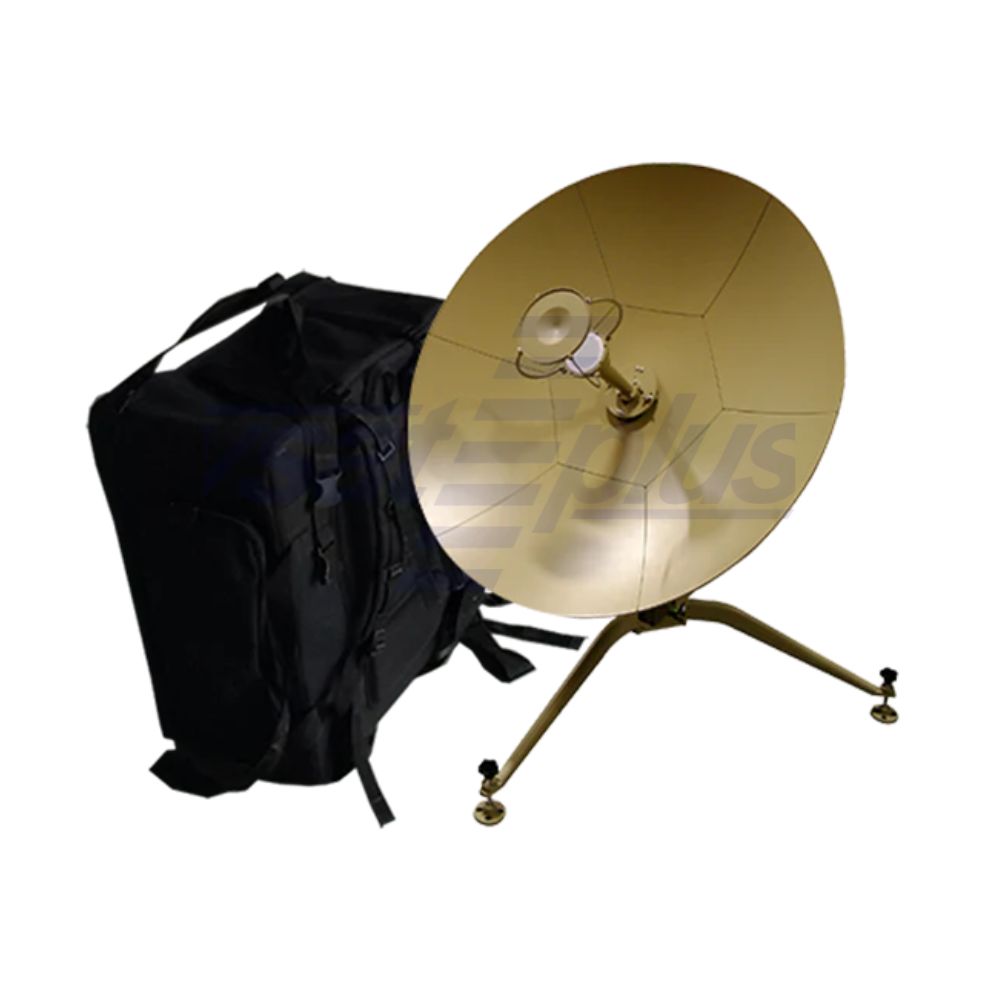

Norsat JM090KUE Journey ManPack 0.9 m Ku-Band Manual Acquire Antenna
The 0.9m Journey Manpack is a high-performance, ultra-portable satellite terminal designed for military and commercial applications. The Journey Manpack comes in a lightweight, airline checkable, single backpack and provides unmatched durability, maximum portability, HD video and IP transmission and 4+hours of continuous runtime with battery pack.
| JM090KUE Key Specifications | |
|---|---|
| Acquisition And Tracking | Manual |
| Band | Ku-Band |
| Product Family | JM090KUE |
| Receive Frequency | Ku Band: 10.70 - 12.75 GHz |
| Reflector Diameter | 0.9 m |
| Transmit Frequency | Ku-Band: 13.75 - 14.50 GHz |
| Antenna Specifications |
|
| Axial Ratio | n/a |
| Azimuth Range | +/- 180° |
| Cross Polarization Isolation | <33 dB on axis |
| Elevation Range | 10° - 90° |
| Feed Configuration | 2-port circular |
| Polarization | Linear +/- 90° |
| Standard Buc Options | 8W, 16W, 20W |
| RF Specifications |
|
| G T | 17.3 dB/K |
| Input VSWR | 2.2 : 1 |
| Midband Gain | 40 dBi (Tx); 39 dBi (Rx) |
| Movement Platform | Elevation over Azimuth |
| Reference Signal Frequency | 0 +/- 5 dBm @ 10 MHz |
| Rx Gain | 37.6 dBi |
| Spectral Regrowth | -26 dBc @ 46 dBm |
| Tx Gain | 38.6 dBi |
| Environmental Specifications |
|
| Humidity | 0 - 98% condensing (Antenna / RF) |
| Temperature Operational | -40 to +80°C |
| Vibration Operational | Meets MIL-STD-810G |
| Weatherproofing | IP65 |
| Windspeed Operational | 36 km/h (free-standing); 65 km/h (anchored) |
| Physical Specifications |
|
| Iata Cases Available | Optional |
| Number Of Cases | 1 IATA |
