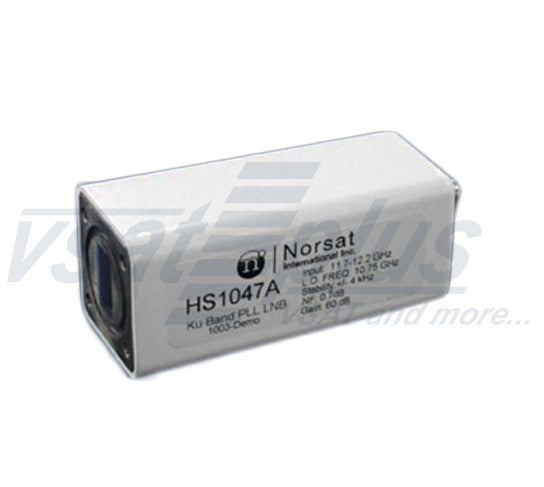

NORSAT HS1048AF HIGH STABILITY KU-BAND PLL LNB

Input Frequency: 11.70-12.20 GHz. LO Stability +/-4 kHz. Noise Figure: 0.8 dB. Output Connector: Type F Female. LO Frequency: 10.75 GHz. Conversion Gain: 60 dB

MECHANICAL DIAGRAM

Norsat HS1048A Specifications
Input Frequency 11.70 to 12.20 GHz
L.O. Frequency 10.75 GHz
Output Frequency 950 to 1450 GHz
Noise Figure 0.8 dB
L.O. Stability (after 60 sec) ±4 kHz
Phase Noise (SSB) -75 dBc/Hz at 1kHz
-80 dBc/Hz at 10kHz
-95 dBc/Hz at 100kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion gain 60 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 200 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm
(4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
Temperature Range -40°C to +60°C
Output Connector Type F female (75 Ohm)
