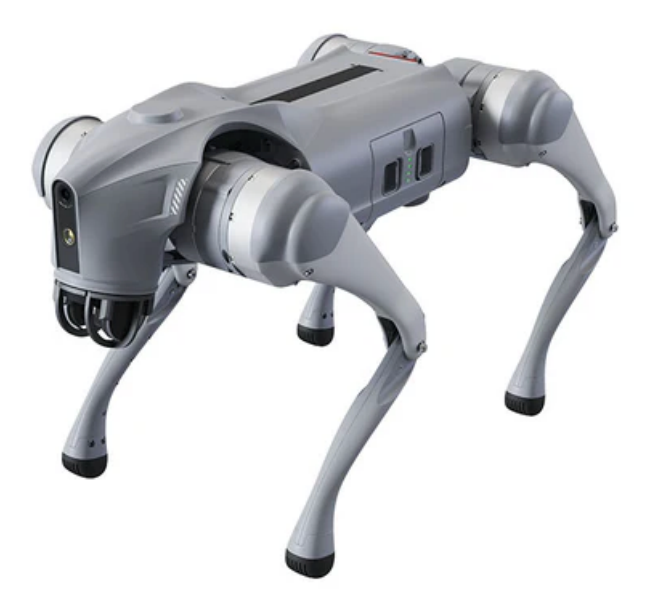

Norsat GQR0116 Intelligent Quadruped Robot
Norsat GQR0116 Intelligent Quadruped Robot
Couldn't load pickup availability
The Norsat GQR0116 Intelligent Quadruped Robot – Special Edition is a state-of-the-art four-legged robotic platform designed for research, industrial, defense, telecom, and educational applications. Unlike wheeled or tracked robots, its quadruped design provides superior mobility, stability, and adaptability across complex terrains.
Equipped with AI computing, advanced sensors, and rugged durability, the GQR0116 goes beyond being a robot — it is a versatile solution for next-generation robotics, automation, and field operations.
At VSATPlus, we proudly provide the GQR0116 to customers worldwide, backed by expert technical support, fast delivery, and global promotions.
Key Features
-
🚀 High Mobility: Walks, climbs, and moves across uneven terrain.
-
🔋 Strong Endurance: 15,000 mAh battery for 2–4 hours of continuous operation.
-
🧠 AI-Powered: Optional NVIDIA Jetson Orin module with 40–100 TOPS computing power.
-
📦 Payload Capacity: Carries up to 12 kg of equipment or cargo.
-
📡 Advanced Connectivity: WiFi6, Bluetooth 5.2, and 4G module for seamless integration.
-
🌍 Rugged Design: IP67 rating with aluminum alloy and engineering plastic construction.
-
🔄 Future-Proof: Supports OTA upgrades and secondary development.
Technical Specifications
|
Category |
Specifications |
|---|---|
|
Battery Life |
2–4 hours |
|
Battery Capacity |
15,000 mAh, 28–33.6V |
|
Charging |
Fast charging (33.6V, 9A) |
|
Max Working Power |
3000 W |
|
Mobility |
Speed 0–3.7 m/s (max 5 m/s); climbing angle 40°; climb drop height ~16 cm |
|
Payload Capacity |
12 kg maximum |
|
Range of Motion |
Body: -48° to 48°; Shank: -156° to -48°; Thigh: -200° to 90° |
|
Dimensions |
Standing: 400 x 700 x 310 mm; Lying: 200 x 760 x 310 mm |
|
Weight |
15 kg (including battery) |
|
Torque |
Max joint torque: 45 N.m |
|
Computing Power |
8-core CPU (standard); NVIDIA Jetson Orin 40–100 TOPS (optional) |
|
Sensors |
Integrated sensor set; super wide-angle 3D LIDAR |
|
Connectivity |
WiFi6 dual-band, Bluetooth 5.2/4.2/2.1, 4G module |
|
Environmental |
IP67 (dustproof, waterproof) |
|
Materials |
Aluminum alloy + high-strength engineering plastic |
|
Special Features |
OTA upgrades, ISS 2.0 intelligent side-follow, obstacle detection, voice functions |
