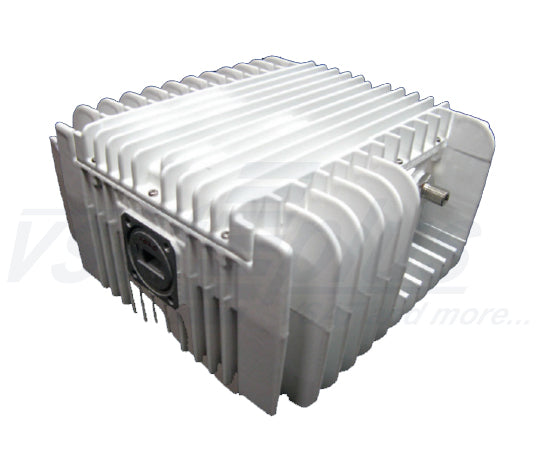

Norsat ELEMENT SERIES 10W Standard Ku-Band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options. The KU ELEMENT series are RoHS compliant.

FEATURES

  • GaN Technology
  • High linearity
  • 18 frequency options
  • RoHS Compliant

OUTLINE DRAWING
Norsat Element Series 10W Std. Ku-Band BUC

Element 10W BUC
Model BUC-ELMTKU010
Output frequency 14.0 – 14.5 GHz
L.O. frequency (GHz) 13.05 GHz
Input frequency (GHz) 950 – 1450 MHz
Output Power (P1db) 40 dBm min
External Reference 10MHz
Reference Power Level -5 dBm to +5dBm
Phase Noise (SSB) -65 dBc/Hz at 100Hz
-75 dBc/Hz at 1kHz
-85 dBc/Hz at 10kHz
-95 dBc/Hz at 100KHz
Linear gain 67 dB
Gain flatness +/-4.0 dB p-p, max over full band
+/- 1.5dB p-p over 54MHz
Gain variation over temperature -4.0 dB p-p over operating range
Interfaces
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Input Connector F: 75 Ω
Output Connector WR-75
Environmental & Physical
Temperature (operational) -40 C to +55 C
Humidity (operational) 0 – 100% condensing
Dimensions (L x W x H) 220 x 194.2 x 103.5 mm
Weight 4.5 kg/ 9.9 lbs
Power
Power requirements 18~ 24, 36 ~ 60 VDC (opt. MS connector)
Power Consumption 100W max
Internal Function Lock detector shuts off Tx should LO unlock
