Norsat ELEMENT SERIES 10W Extended Ku-Band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options. The KU ELEMENT series are RoHS compliant.


FEATURES

  • GaN Technology
  • High linearity
  • 18 frequency options
  • RoHS Compliant

  • OUTLINE DRAWING

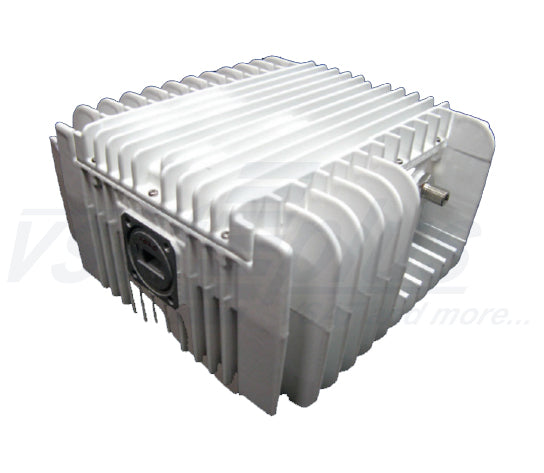

    Norsat Element Series 10W Std. Ku-Band BUC

    Element 10W Extended BUC
    Model BUC-ELMTKU010-E
    Output frequency 13.25 – 14.5 GHz
    L.O. frequency (GHz) 12.80 GHz
    Input frequency (GHz) 950 – 1700 MHz
    Output Power (P1db) 40 dBm min
    External Reference 10MHz
    Reference Power Level -5 dBm to +5dBm
    Phase Noise (SSB) -65 dBc/Hz at 100Hz
    -75 dBc/Hz at 1kHz
    -85 dBc/Hz at 10kHz
    -95 dBc/Hz at 100KHz
    Linear gain 67 dB
    Gain flatness +/-4.0 dB p-p, max over full band
    +/- 1.5dB p-p over 54MHz
    Gain variation over temperature -4.0 dB p-p over operating range
    Interfaces
    Input VSWR 2.0 : 1
    Output VSWR 2.0 : 1
    Input Connector F: 75 Ω
    Output Connector WR-75
    Environmental & Physical
    Temperature (operational) -40 C to +55 C
    Humidity (operational) 0 – 100% condensing
    Dimensions (L x W x H) 220 x 194.2 x 103.5 mm
    Weight 4.5 kg/ 9.9 lbs
    Power
    Power requirements 18~ 24, 36 ~ 60 VDC (opt. MS connector)
    Power Consumption 100W max
    Internal Function Lock detector shuts off Tx should LO unlock
