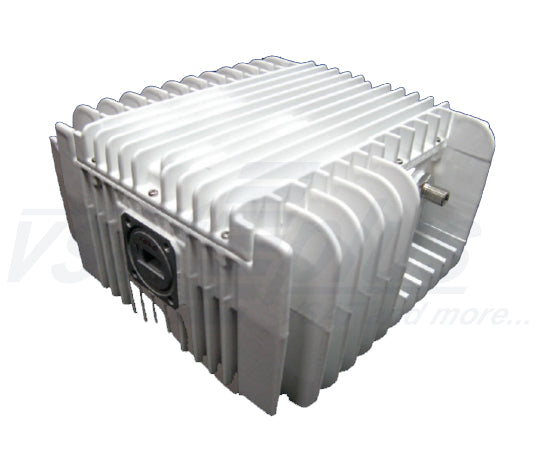

Norsat ELMTKU008 Element Series 8W Standard Ku-Band BUC
Small size, ideal for feed mounting
18 frequency options
RoHS Compliant
OUTLINE DRAWING
Norsat ELMTKU008 Element Series 8W Standard Ku-Band BUC
8W Ku-Band BUCs
Norsat Element Series 8W Standard Ku-Band BUC Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for...
- SKU::
- Category: All Products, Block Upconverter BUC, Ku-Band Block Upconverter BUC, Norsat
Norsat Element Series 8W Standard Ku-Band BUC
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications. Stock units are available in standard and extended Ku-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55GHz up to 17.7 -18.1 GHz.
FEATURES
OUTLINE DRAWING
| Element 8W BUC | |
|---|---|
| Model | BUC-ELMTKU008 |
| Output frequency | 14.0 – 14.5 GHz |
| L.O. frequency (GHz) | 13.05 GHz |
| Input frequency (GHz) | 950 – 1450 MHz |
| Output Power (P1db) | 39 dBm min |
| External Reference | 10MHz |
| Reference Power Level | -5 dBm to +5dBm |
| Phase Noise (SSB) | -65 dBc/Hz at 100Hz -75 dBc/Hz at 1kHz -85 dBc/Hz at 10kHz -95 dBc/Hz at 100KHz |
| Linear gain | 60 dB |
| Gain flatness | +/-4.0 dB p-p, max over full band +/- 1.5dB p-p over 54MHz |
| Gain variation over temperature | -4.0 dB p-p over operating range |
| Interfaces | |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Input Connector | F: 75 Ω |
| Output Connector | WR-75 |
| Environmental & Physical | |
| Temperature (operational) | -40 C to +55 C |
| Humidity (operational) | 0 – 100% condensing |
| Dimensions (L x W x H) | 176 x 169 x 101 mm |
| Weight | 2.7 kg/ 5.9 lbs |
| Power | |
| Power requirements | +18 to +60 VDC over IFL |
| Power Consumption | 75W max |
