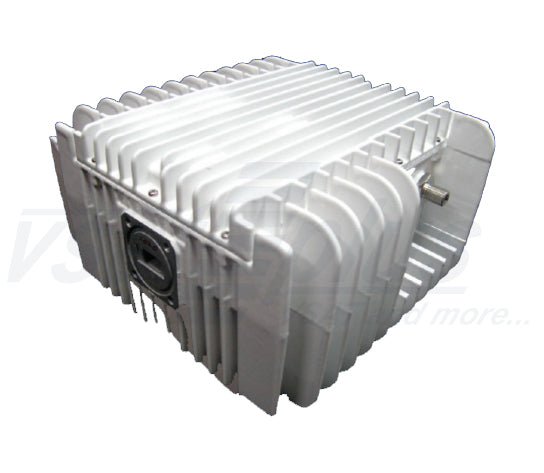

Norsat ELMTKU008 Element Series 8W Extended Ku-Band BUC

Norsat ELMTKU008 Element Series 8W Extended Ku-Band BUC

Request for a quote

SKU: ELMTKU008-S

Norsat Element Series 8W Extended Ku-Band BUC

Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications. Stock units are available in standard and extended Ku-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55GHz up to 17.7 -18.1 GHz.

FEATURES

  • Model BUC-ELMTKU008-S
  • Output frequency (Ghz) 14.0 – 14.5 GHz
  • L.O. frequency (GHz) 13.05 GHz
  • Input frequency (MHz) 950 – 1450 MHz
  • Small size, ideal for feed mounting
  • 18 frequency options
  • RoHS Compliant

    • OUTLINE DRAWING
    Norsat Element Series 10W Std. Ku-Band BUC

    Element 8W BUC
    Model BUC-ELMTKU008
    Output frequency 14.0 – 14.5 GHz
    L.O. frequency (GHz) 13.05 GHz
    Input frequency (GHz) 950 – 1450 MHz
    Output Power (P1db) 39 dBm min
    External Reference 10MHz
    Reference Power Level -5 dBm to +5dBm
    Phase Noise (SSB) -65 dBc/Hz at 100Hz
    -75 dBc/Hz at 1kHz
    -85 dBc/Hz at 10kHz
    -95 dBc/Hz at 100KHz
    Linear gain 60 dB
    Gain flatness +/-4.0 dB p-p, max over full band
    +/- 1.5dB p-p over 54MHz
    Gain variation over temperature -4.0 dB p-p over operating range
    Interfaces
    Input VSWR 2.0 : 1
    Output VSWR 2.0 : 1
    Input Connector F: 75 Ω
    Output Connector WR-75
    Environmental & Physical
    Temperature (operational) -40 C to +55 C
    Humidity (operational) 0 – 100% condensing
    Dimensions (L x W x H) 176 x 169 x 101 mm
    Weight 2.7 kg/ 5.9 lbs
    Power
    Power requirements +18 to +60 VDC over IFL
    Power Consumption 75W max
