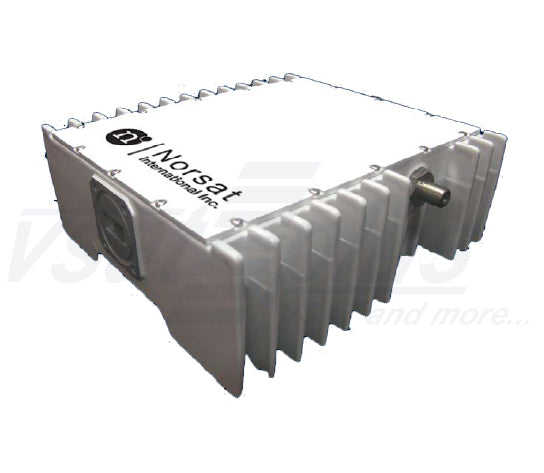

Norsat 6W Element Series Extended Ku-band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications. Stock units are available in standard and extended Ku-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55GHz up to 17.7 -18.1 GHz.

FEATURES

  • Output frequency (Ghz) : 13.75 – 14.5 GHz
  • L.O. frequency (GHz) : 12.80 GHz
  • Input frequency (MHz) : 950 – 1700 MHz
  • Small size, ideal for feed mounting
  • 18 frequency options
  • RoHS Compliant

    • MECHANICAL DRAWING

    Norsat ElmtKU006 6W Element Series Standard Ku-band BUC

    Element 6W BUC
    Model BUC-ELMTKU006-E
    Output frequency 13.75 – 14.5 GHz
    L.O. frequency (GHz) 12.80 GHz
    Input frequency (GHz) 950 – 1700 MHz
    Output Power (P1db) 37.8 dBm min
    External Reference 10MHz
    Reference Power Level -5 dBm to +5dBm
    Phase Noise (SSB) -65 dBc/Hz at 100Hz
    -75 dBc/Hz at 1kHz
    -85 dBc/Hz at 10kHz
    -95 dBc/Hz at 100KHz
    Linear gain 60 dB
    Gain flatness +/-4.0 dB p-p, max over full band
    +/- 1.5dB p-p over 54MHz
    Gain variation over temperature -4.0 dB p-p over operating range
    Gain variation over 24hrs +/-0.5 dB max at constant temp
    Intermodulation -25 dBc @ Plinear with 2 equal carriers at 3dB total power backoff from rated power
    Spectral Regrowth (typical) -26 dBc at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK
    AM/PM Conversion 2 deg/dB (up to 2 dB below rated Output Power)
    Max Input Power without damage 13 dBm
    Output Spurious
        In Band
        Out Band
    -60 dBc
    -50 dBc
    Noise power density -90 dBm/Hz in Tx
    -156 dBm/Hz in Rx
    Interfaces
    Input VSWR 2.0 : 1
    Output VSWR 2.0 : 1
    Input Connector N: 50 Ω, F: 75 Ω
    Output Connector WR-75
    Environmental & Physical
    Temperature (operational) -40 C to +55 C
    Humidity (operational) 0 – 100% condensing
    Dimensions (L x W x H) 176 x 162 x 65 mm
    Weight 1.8 kg
    Enclosed Accessories O-Ring (1 pc)
    Screws (4 pc)
    Power
    Power requirements +15 to +24 VDC over IFL
    Power Consumption 48W max
