4W Ku-Band BUCs

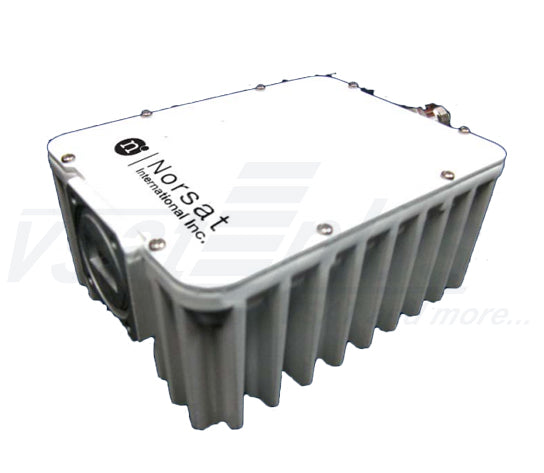

Norsat ELEMENT Series 4W Standard Ku-Band BUC
Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications. Stock units are available in standard and extended Ku-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55GHz up to 17.7 -18.1 GHz.
|Element 4W BUC|
|Output frequency||13.75 – 14.5 GHz|
|L.O. frequency (GHz)||12.80 GHz|
|Input frequency (GHz)||950 – 1700 MHz|
|Output Power (P1db)||36 dBm min|
|Reference Power Level||-5 dBm to +5dBm|
|Phase Noise (SSB)||-65 dBc/Hz at 100Hz
-75 dBc/Hz at 1kHz
-85 dBc/Hz at 10kHz
-95 dBc/Hz at 100KHz
|Linear gain||58 dB|
|Gain flatness||+/-4.0 dB p-p, max over full band
+/- 1.5dB p-p over 54MHz
|Gain variation over temperature||-4.0 dB p-p over operating range|
|Gain variation over 24hrs||+/-0.5 dB max at constant temp|
|Intermodulation||-25 dBc @ Plinear with 2 equal carriers at 3dB total power backoff from rated power|
|Spectral Regrowth (typical)||-26 dBc at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK|
|AM/PM Conversion||2 deg/dB (up to 2 dB below rated Output Power)|
|Max Input Power without damage||13 dBm|
|Noise power density||-90 dBm/Hz in Tx
-156 dBm/Hz in Rx
|Input VSWR||2.0 : 1|
|Output VSWR||2.0 : 1|
|Input Connector||N: 50 Ω, F: 75 Ω|
|Environmental & Physical|
|Temperature (operational)||-40 C to +55 C|
|Humidity (operational)||0 – 100% condensing|
|Dimensions (L x W x H)||129 x 95 x 58 mm|
|Enclosed Accessories||O-Ring (1 pc)
Screws (4 pc)
|Power requirements||+15 to +24 VDC over IFL|
|Power Consumption||35W max|
