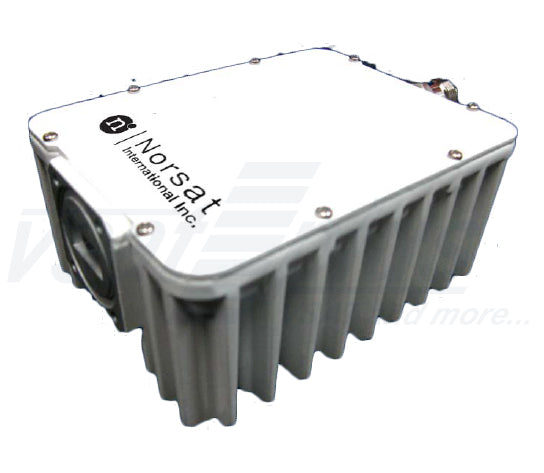

Norsat Element Series 2W Standard Ku-Band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications. Stock units are available in standard and extended Ku-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55GHz up to 17.7 -18.1 GHz.


FEATURES

  • Model BUC-ELMTKU002-S
  • Output frequency (MHz) 14.0 – 14.5 GHz
  • L.O. frequency (GHz) 13.05 GHz
  • Input frequency (GHz) 950 – 1450 MHz
  • Small size, ideal for feed mounting
  • 18 frequency options available
  • RoHS Compliant


MECHANICAL DIAGRAM

Norsat Element Series 2W Standard Ku-Band BUC

Element 2W BUC
Model BUC-ELMTKU002-S
Output frequency 14.0 – 14.5 GHz
L.O. frequency (GHz) 13.05 GHz
Input frequency (GHz) 950 – 1450 MHz
Output Power (P1db) 33 dBm min
External Reference 10MHz
Reference Power Level -5 dBm to +5dBm
Phase Noise (SSB) -65 dBc/Hz at 100Hz
-75 dBc/Hz at 1kHz
-85 dBc/Hz at 10kHz
-95 dBc/Hz at 100KHz
Linear gain 55 dB
Gain flatness +/-4.0 dB p-p, max over full band
+/- 1.5dB p-p over 54MHz
Gain variation over temperature -4.0 dB p-p over operating range
Gain variation over 24hrs +/-0.5 dB max at constant temp
Intermodulation -25 dBc @ Plinear with 2 equal carriers at 3dB total power backoff from rated power
Spectral Regrowth (typical) -26 dBc at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK
AM/PM Conversion 2 deg/dB (up to 2 dB below rated Output Power)
Max Input Power without damage 13 dBm
Output Spurious
    In Band
    Out Band

-60 dBc
-50 dBc
Noise power density -90 dBm/Hz in Tx
-156 dBm/Hz in Rx
Interfaces
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Input Connector N: 50 Ω, F: 75 Ω
Output Connector WR-75
Environmental & Physical
Temperature (operational) -40 C to +55 C
Humidity (operational) 0 – 100% condensing
Dimensions (L x W x H) 129 x 95 x 58 mm
Weight 700g
Enclosed Accessories O-Ring (1 pc)
Screws (4 pc)
Power
Power requirements +15 to +24 VDC over IFL
Power Consumption 18W max
