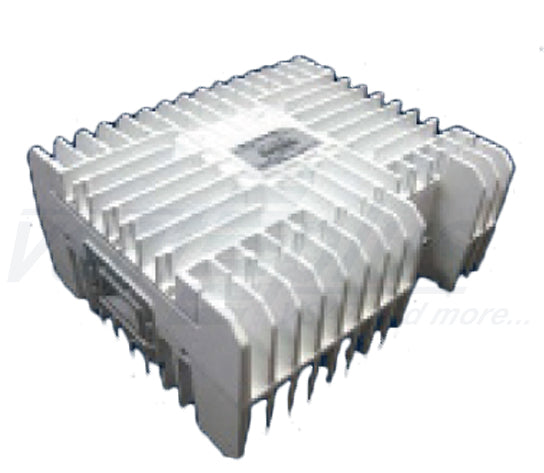

Norsat ELMTC020 ELEMENT Series 20W Palapa C-Band BUC

Not Specified

20W C-Band BUC

Norsat

8.0 kg

Norsat ELEMENT Series 20W Palapa C-Band BUC Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT seriesoffers small size and weight with a variety of frequency options that make it ideal for VSAT applications. FEATURES Model No. BUC-ELMTC020-P Output frequency (Mhz) 6.425- 6.725...
Add to wishlist

Norsat ELEMENT Series 20W Palapa C-Band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT series
offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.


FEATURES

  • Model No. BUC-ELMTC020-P
  • Output frequency (Mhz) 6.425- 6.725 GHz
  • L.O. frequency (GHz) 5.275 GHz
  • Input frequency (GHz) 1150-1450 MHz


MECHANICAL DRAWING

Norsat ELMTC020 ELEMENT Series 20W Standard C-Band BUC

RF Specifications
Output Power (P1db) 43 dBm min
External Reference 10MHz
Reference Power Level -5 dBm to +5dBm
Phase Noise (SSB) -60 dBc/Hz at 100Hz -70 dBc/Hz at 1kHz -80 dBc/Hz at 10kHz -90 dBc/Hz at 100KHz
Linear gain 70 dB
Gain flatness +/-4.0 dB p-p, max over full band
+/- 1.5 dB p-p over 54MHz
Gain variation over temperature -4.0 dB p-p over operating range
Output Spurious -In Band -60 dBc
-Out Band -50 dBc
Interfaces
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Input Connector F: 75 Ω
Output Connector CPR137G
Environmental & Physical
Temperature (operational) -40 C to +55 C
Humidity (operational) 0 – 100% condensing
Dimensions (L x W x H) 220 x 195 x 136 mm
Weight 5 kg
Enclosed Accessories O-Ring (1 pc)
Screws (4 pc)
Power
Power requirements +36 to +60 VDC over IFL
Power Consumption 180W max
