20W C-Band BUC

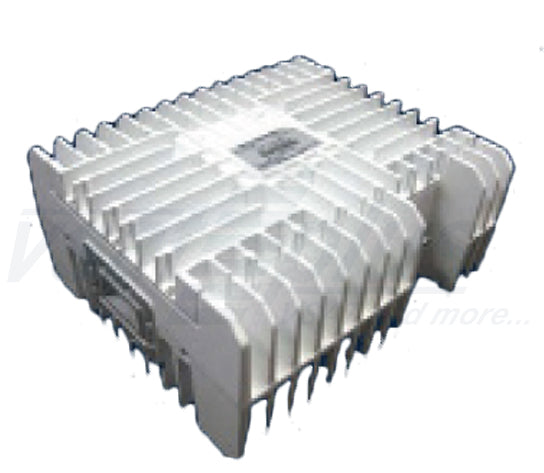

Norsat ELEMENT Series 20W Insat C-Band BUC
Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT series
offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
- Model No. BUC-ELMTC020-I
- Output frequency (Mhz) 6.725-7.025 GHz
- L.O. frequency (GHz) 5.75 GHz
- Input frequency (GHz) 975-1275 MHz
|Output Power (P1db)||43 dBm min|
|Reference Power Level||-5 dBm to +5dBm|
|Phase Noise (SSB)||-60 dBc/Hz at 100Hz -70 dBc/Hz at 1kHz -80 dBc/Hz at 10kHz -90 dBc/Hz at 100KHz|
|Linear gain||70 dB|
|Gain flatness||+/-4.0 dB p-p, max over full band
+/- 1.5 dB p-p over 54MHz
|Gain variation over temperature||-4.0 dB p-p over operating range|
|Output Spurious||-In Band -60 dBc
-Out Band -50 dBc
|Input VSWR||2.0 : 1|
|Output VSWR||2.0 : 1|
|Input Connector||F: 75 Ω|
|Environmental & Physical|
|Temperature (operational)||-40 C to +55 C|
|Humidity (operational)||0 – 100% condensing|
|Dimensions (L x W x H)||220 x 195 x 136 mm|
|Enclosed Accessories||O-Ring (1 pc)
Screws (4 pc)
|Power requirements||+36 to +60 VDC over IFL|
|Power Consumption||180W max|
