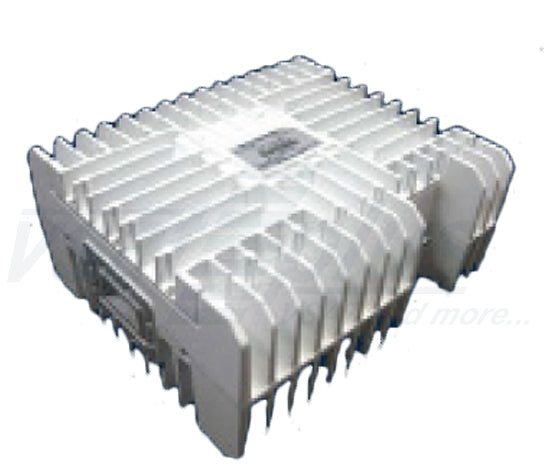

Norsat ELEMENT Series 10W Insat C-Band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.


FEATURES

  • Model No. BUC-ELMTC010-I
  • Output frequency (Mhz) 6.725-7.025 GHz
  • L.O. frequency (GHz) 5.75 GHz
  • Input frequency (GHz) 975-1275 MHz


MECHANICAL DRAWING

Norsat ELMTC010 ELEMENT Series 10W Standard C-Band BUC

RF Specifications
Output Power (P1db) 40 dBm min
External Reference 10MHz
Reference Power Level -5 dBm to +5dBm
Phase Noise (SSB) -70 dBc/Hz at 100Hz -80 dBc/Hz at 1kHz -90 dBc/Hz at 10kHz -100 dBc/Hz at 100KHz
Linear gain 65 dB
Gain flatness +/-4.0 dB p-p, max over full band
+/- 1.5 dB p-p over 54MHz
Gain variation over temperature -4.0 dB p-p over operating range
Output Spurious -In Band -60 dBc
-Out Band -50 dBc
Interfaces
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Input Connector F: 75 Ω
Output Connector CPR1376
Environmental & Physical
Temperature (operational) -40 C to +55 C
Humidity (operational) 0 – 100% condensing
Dimensions (L x W x H) 220 x 194 x 104 mm
Weight 4.5 kg
Enclosed Accessories O-Ring (1 pc)
Screws (4 pc)
Power
Power requirements +18 to +24 VDC over IFL
Power Consumption 80W max
