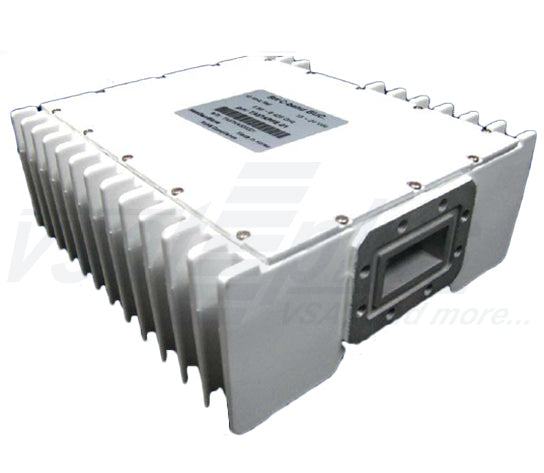

Norsat ELEMENT Series 5W Palapa C-Band BUC

Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.



FEATURES

  • Model No. BUC-ELMTC005-P
  • Output frequency (Mhz) 6.425- 6.725 GHz
  • L.O. frequency (GHz) 5.275 GHz
  • Input frequency (GHz) 1150-1450 MHz

  • MECHANICAL DRAWING

    Norsat ELEMENT Series 5W Standard C-Band BUC

    RF Specifications
    Output Power (P1db) 37 dBm min
    External Reference 10MHz
    Reference Power Level -5 dBm to +5dBm
    Phase Noise (SS B) -65 dBc/Hz at 100Hz
    -75 dBc/Hz at 1kHz
    -85 dBc/Hz at 10kHz
    -95 dBc/Hz at 100KHz
    Linear gain 61 dB
    Gain Flatness +/- 4.0 dB p-p, max over full band
    +/- 1.5 dB p-p over 54MHz
    Gain variation over temperature -4.0 dB p-p over operating range
    Output Spurious             -In Band -60 dBc
                                                  -Out Band -50 dBc
    Interfaces
    Input VSWR 2.0 : 1
    Output VSWR 2.0 : 1
    Input Connector  N: 50 Ω, F: 75 Ω
    Output Connector CPR137G
    Environmental & Physical
    Temperature (operational) -40 C to +55 C
    Humidity (operational) 0 – 100% condensing
    Dimensions (L x W x H) 176 x 161.5 x 65 mm
    (16.9 x 6.4 x 2.6 inches)
    Weight 1.8 kg (4.0 lbs)
    Enclosed Accessories O-Ring (1 pc)
    Screws (4 pc)
    Power
    Power requirements +15 to +24 VDC over IFL
    Power Consumption 55W max
