Norsat eBPF-C Series C-Band 5G Extreme Bandpass Filter

Name: Norsat eBPF-C Series C-Band 5G Extreme Bandpass Filter
Brand: Norsat
Availability: InStock

Sale Sold out

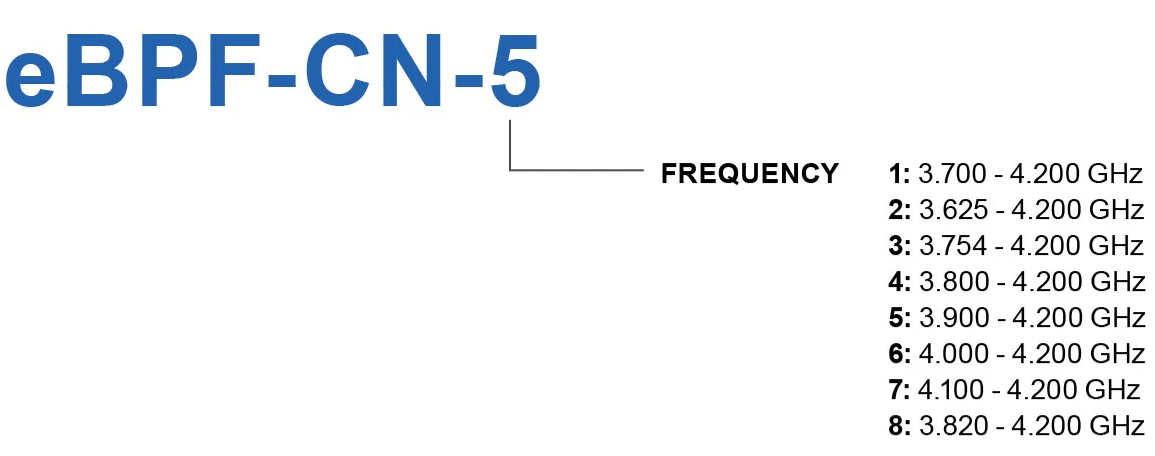

Frequency 1: 3.70 - 4.20 GHz 2: 3.625 - 4.200 GHz 3: 3.754 - 4.200 GHz 4: 3.80 - 4.20 GHz 5: 3.90 - 4.20 GHz 6: 4.00 - 4.20 GHz 7: 4.10 - 4.20 GHz 8: 3.820 - 4.200 GHz

Product variants

Quantity

Request for a quote

Norsat’s C-band interference extreme band pass filter features a broad passband with low insertion loss, steep skirts that roll off quickly and high stopband rejection. eBPF-C Series.

KEY SPECIFICATIONS
Band	C-Band
Input Frequency Band 1	C-Band: 3.70 - 4.20 GHz
Product Family	eBPF-C

RF SPECIFICATIONS
Output VSWR	1.4 : 1

INTERFACE SPECIFICATIONS
RF Input Connector	CPR 229G waveguide grooved
RF Output Connector	CPR-229F

PHYSICAL SPECIFICATIONS

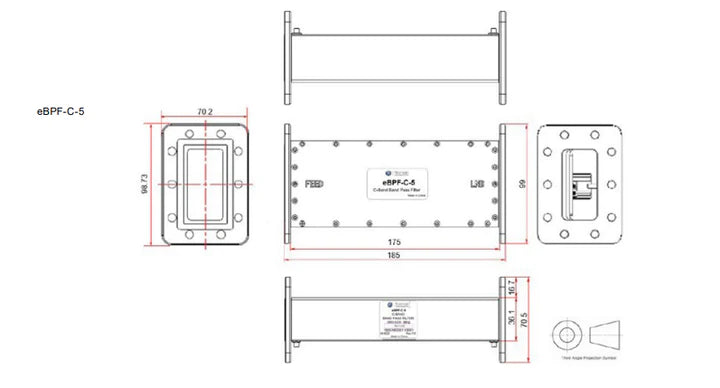

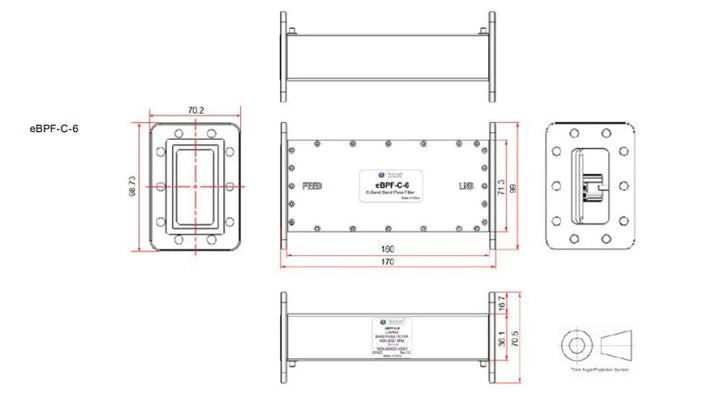

Dimensions (LxWxH)	185 x 100 x 71 mm
