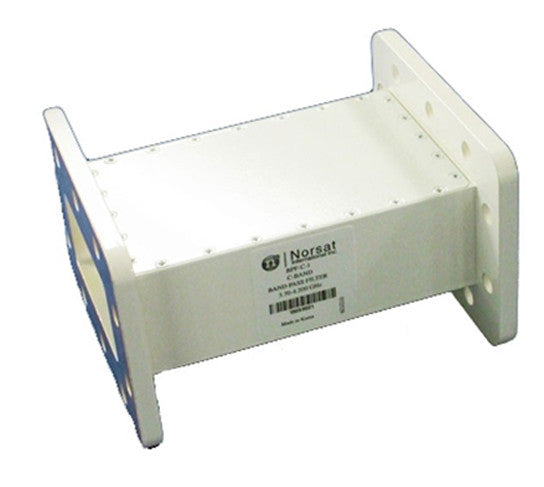

Norsat C-Band Band Pass Filter (BPF-C-4)

Norsat C-Band Band Pass Filter (BPF-C-4)

Request for a quote

SKU: BPF-C-4

Norsat C-Band Band Pass Filter (BPF-C-4)

  • Frequency Range: 3.80 - 4.20 GHz
  • Rejects terrestrial interference in C-Band (WiMAX, Radar and C-Band transmitter)
  • Easily installed between the feed and LNB
  • Suitable for use with Norsat’s C-Band LNBs
  • Environmentally sealed and moisture resistant
  • VSWR: 1.4 : 1
  • Insertion loss in band: 0.5 dB
  • Waveguide flange: CPR-229G (input), CPR-229F (output)
  • Dimensions: 120 (L) x 100 (W) x 70 mm
  • Weight: 650 g
BPF-C-4 Typical Specifications
Frequency range 3.80 - 4.20 GHz
VSWR 1.4 : 1
Insertion loss in band 0.5 dB
Waveguide flange CPR-229G (input), CPR-229F (output)
Dimensions 120 (L) x 100 (W) x 70 mm
Weight 650 g
