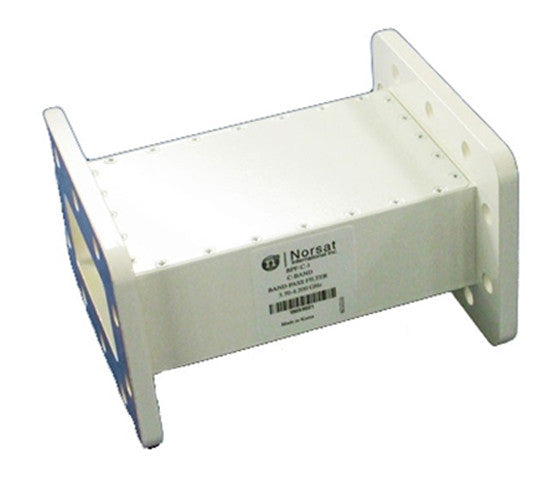

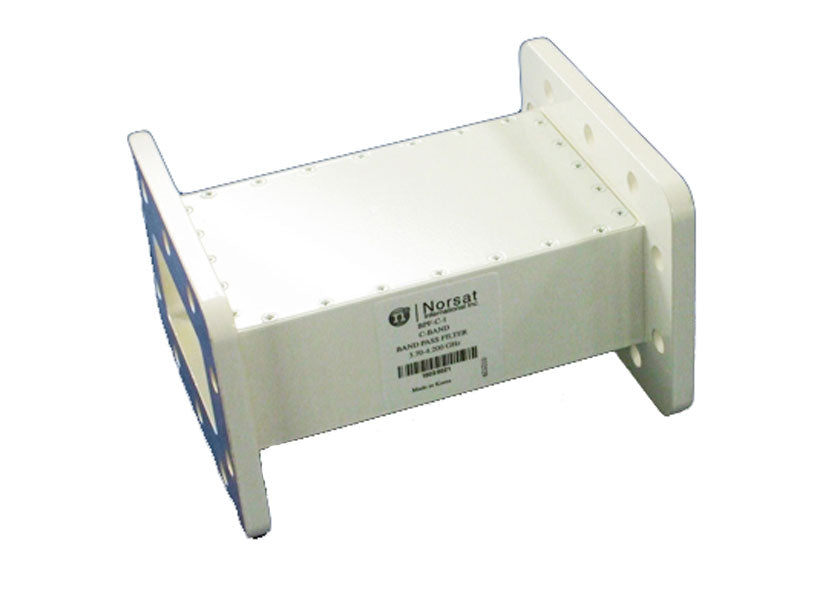

Norsat C-Band Band Pass Filter (BPF-C-2)

Norsat C-Band Band Pass Filter (BPF-C-2)

RF Filter

Norsat C-Band Band Pass Filter (BPF-C-2) Frequency Range: 3.625 - 4.20 GHz Rejects terrestrial interference in C-Band (WiMAX, Radar and C-Band transmitter) Easily installed between the feed and LNB Suitable for use with Norsat’s C-Band LNBs Environmentally sealed and moisture...

  • Category: All Products, Antenna Feeds, Antennas, Norsat, RF Filter

Norsat C-Band Band Pass Filter (BPF-C-2)

  • Frequency Range: 3.625 - 4.20 GHz
  • Rejects terrestrial interference in C-Band (WiMAX, Radar and C-Band transmitter)
  • Easily installed between the feed and LNB
  • Suitable for use with Norsat’s C-Band LNBs
  • Environmentally sealed and moisture resistant
  • VSWR: 1.4 : 1
  • Insertion loss in band: 0.5 dB
  • Waveguide flange: CPR-229G (input), CPR-229F (output)
  • Dimensions: 120 (L) x 100 (W) x 70 mm
  • Weight: 650 g

    BPF-C-2 FREQUENCY PLOT

    BPF-C-2 Typical Specifications
    Frequency range 3.625 to 4.20 GHz
    VSWR 1.4 : 1
    Insertion loss in band 0.5 dB
    Waveguide flange CPR-229G (input), CPR-229F (output)
    Dimensions 120 (L) x 100 (W) x 70 mm
    Weight 650 g
