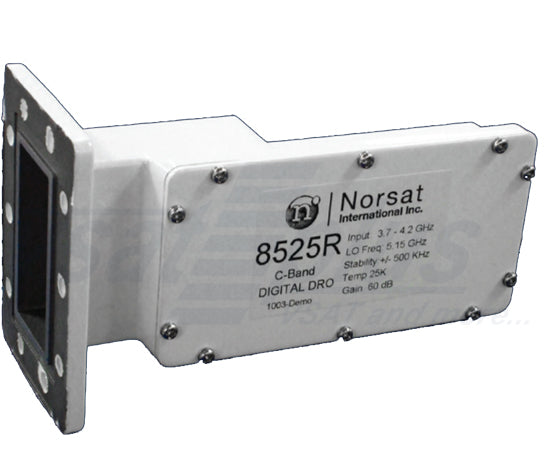

Norsat 8525R Series C-Band DRO Digital LNB +/- 500 kHz

Norsat 8525R Series C-Band DRO Digital LNB +/- 500 kHz

Input Type
Request for a quote

SKU: NOR-8525RF

Norsat 8525R Series C-Band DRO Digital LNB +/- 500 kHz

  • (Discontinued model. replaced by 5250R)
  • Input Frequency: 3.7 – 4.2 GHz
  • Local Frequency: 5.15 GHz
  • Output Frequency: 950 – 1450 MHz
  • Local Stability: ±500 kHz
  • Noise Temperature: 25K

The Norsat 8525R Series C-Band LNB has a local oscillator frequency of 5.15 GHz and operates from 3.7 - 4.2 GHz. The 8525R LNB features a 25K noise temperature configuration. This DRO Norsat C-Band LNB has a CPR229 waveguide input and offers a Local Oscillator (L.O.) stability of ±500 kHz. Type-F or Type-N connector output.

Norsat 8525R Series C-Band DRO Digital LNB +/- 500 kHz

Model
  • Norsat 8525R
Input Frequency
  • 3.7 - 4.2 GHz
Local Frequency
  • 5.15 GHz
Local Stability
  • ±500 kHz
Noise Temperature
  • 25K
Output Frequency
  • 950 - 1450 MHz
Input VSWR
  • 2.0:1
Output VSWR
  • 2.2:1
Gain
  • 62 dB
Output P1dB
  • 8 dBm
Power
  • 12 - 24V DC supplied through center conductor of IF cable
Current Drain
  • 130 mA
Input Waveguide
  • CPR 229G
Temperature Range
  • -40°C to +60°C
Dimensions
  • 7.1 x 4.0 x 2.8 Inches
Weight
  • 12.5 oz
