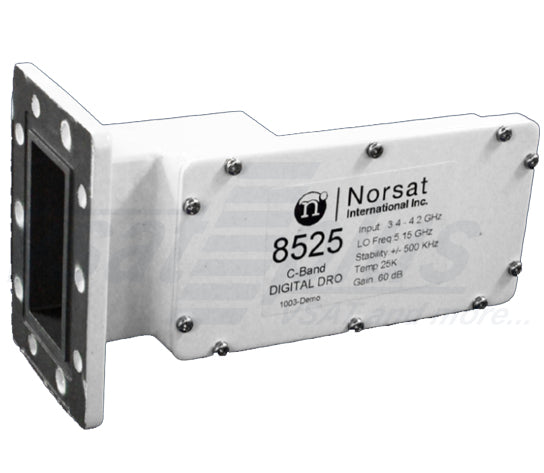

Norsat 8520 Series C-Band Digital DRO LNB

Norsat 8520 Series C-Band Digital DRO LNB

C-Band DRO LNB

Norsat 8520 Series C-Band Digital DRO LNB Input Frequency: 3.4 - 4.2 GHz Output Frequency: 950 - 1750 MHz L.O. Stability: +/- 500 kHz Noise Figure: 0.29 dB Output Connector: N or F-Type Female L.O. Frequency: 5.15 GHz Conversion Gain:...

  • Category: All Products, C-Band LNBs, Low Noise Block LNB, Norsat

Norsat 8520 Series C-Band Digital DRO LNB

  • Input Frequency: 3.4 - 4.2 GHz
  • Output Frequency: 950 - 1750 MHz
  • L.O. Stability: +/- 500 kHz
  • Noise Figure: 0.29 dB
  • Output Connector: N or F-Type Female
  • L.O. Frequency: 5.15 GHz
  • Conversion Gain: 64 dB

With extensive proven reliability in the field the 8000 series remains Norsat's premium quality digital C-Band DRO LNB. The Norsat 8520 DRO LNB is designed to provide commercial quality for VSAT and select digital applications such as:

  • Higher data rate digital video or commercial analog
  • SCPC digital or analog audio applications
  • Any SCPC data rate above 1 Mbps

Norsat Advantages

  • Norsat LNBs are graded by satellite and and Noise Temperature to provide the perfect balance between required performance and cost
  • Proven reliability for lower lifetime costs
  • Excellent DRO L.O. stability to control receiver drift and employ lower bit rates or narrower space segment
  • Excellent Phase Noise to Lower Carrier to Noise margins improving BER

Norsat 8520 Series C-Band Digital DRO LNB

Model
  • Norsat 8520
Input Frequency
  • 3.4 - 4.2 GHz
Local Frequency
  • 5.15 GHz
Local Stability
  • ±500 kHz
Noise Temperature
  • 20K
Output Frequency
  • 950 - 1750 MHz
Phase Noise
  • -65 dBc/Hz @ 1 kHz
  • -80 dBc/Hz @ 10 kHz
  • -95 dBc/Hz @ 100 kHz
Input VSWR
  • 2.0:1
Output VSWR
  • 2.2:1
Gain
  • 64 dB
Output P1dB
  • 8 dBm
Power
  • 12 - 24V DC supplied through center conductor of IF cable
Current Drain
  • 130 mA
Input Waveguide
  • CPR 229G
Temperature Range
  • -40°C to +60°C
Dimensions
  • 7.1 x 4.0 x 2.8 Inches
Weight
  • 15 oz
