Norsat 6-Band Universal LNB Controller
Norsat 6-Band Universal LNB Controller
Couldn't load pickup availability

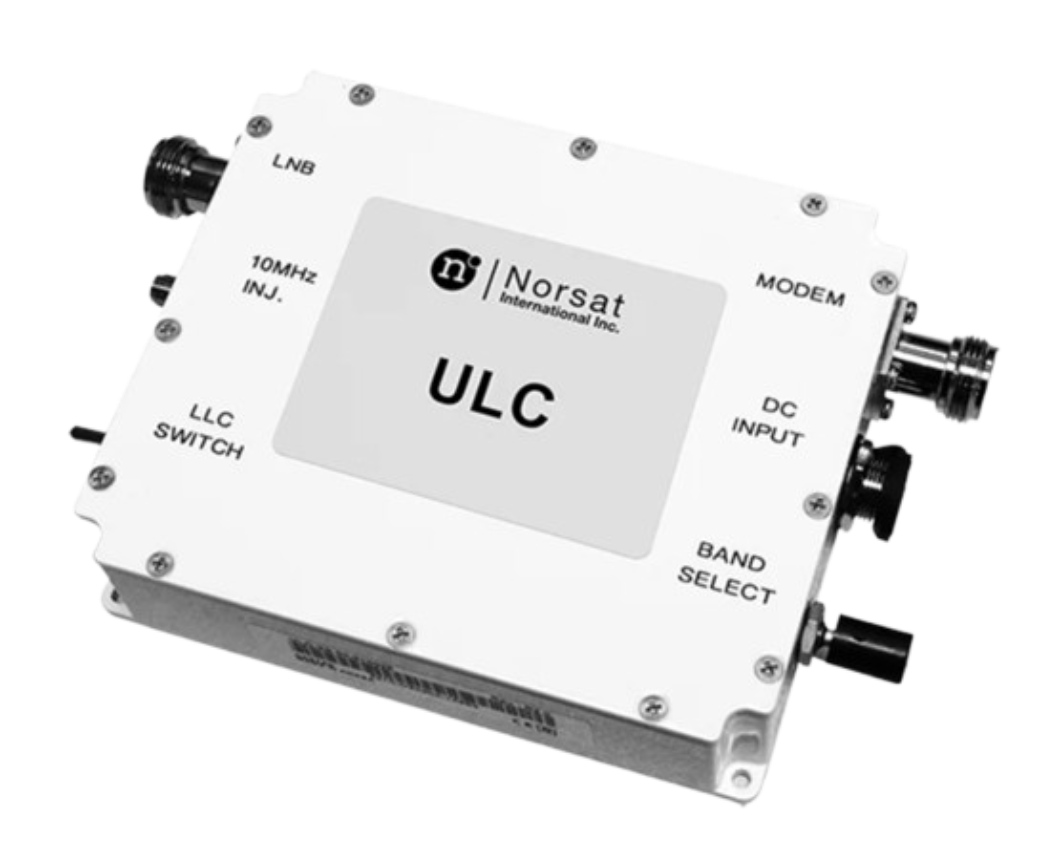

The Norsat 6-Band Universal LNB Controller (ULC) is a compact and reliable control solution designed to simplify the operation of multi-band satellite LNBs. Supporting six selectable frequency bands through voltage and 22 kHz tone switching, the ULC is ideal for professional satellite communication systems, teleports, broadcast facilities, and VSAT networks. With multiple connector options, optional 10 MHz reference configurations, and built-in Line Length Compensation, it ensures stable and flexible integration into a wide range of SATCOM applications. The rugged design allows reliable operation in temperatures from -40°C to +60°C, making it suitable for demanding indoor and outdoor environments.
Key Features
- Supports 6-band LNB switching
- Voltage and 22 kHz tone band selection
- Optional 10 MHz internal or external reference
- Available with F, N, or SMA connectors
- Built-in Line Length Compensation (+1 VDC)
- Compact and lightweight design
- Wide operating temperature: -40°C to +60°C
- Ideal for teleports, VSAT, broadcast, and satellite ground stations
Technical Specifications
|
Specification |
Details |
|---|---|
|

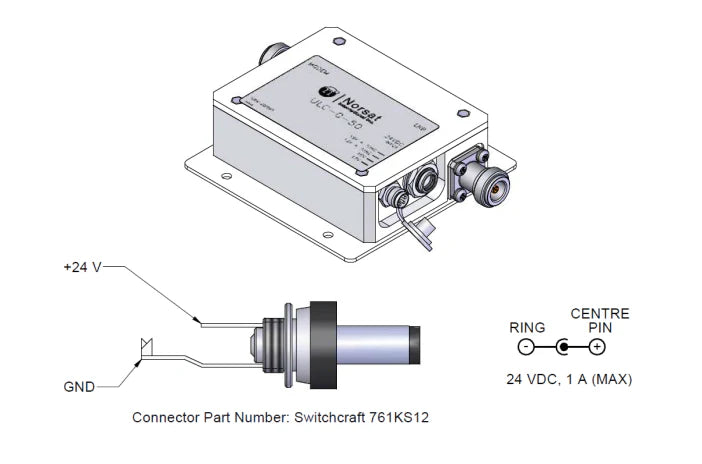

Input Voltage |
23–25 VDC |
|
Tone Frequency |
20–24 kHz |
|
Operating Temperature |
-40°C to +60°C |
|
Connector Options |
F (75Ω), N (50Ω), SMA (50Ω) |
|
Reference Options |
None, Internal 10 MHz, External 10 MHz Injection |
|
Dimensions |
100 × 120 × 30 mm / 130 × 120 × 30 mm |
|
Weight |
670–850 g |
Applications
- VSAT Networks
- Teleports
- Broadcast Earth Stations
- Satellite Ground Stations
Available from VSATplus, the Norsat 6-Band Universal LNB Controller offers a dependable and flexible solution for managing multi-band LNB systems with professional-grade performance and worldwide technical support.
Contact us: Sales@vsatplus.com
Norsat 6-Band Universal LNB Controller Datasheet
