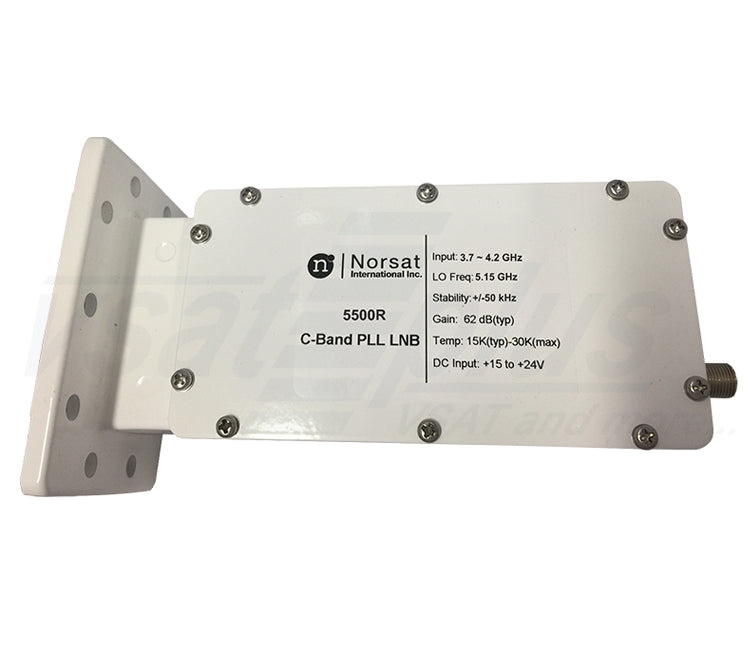

Norsat 5500R Series C-Band PLL LNB +/-50 kHz Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required Input Frequency: 3.4 - 4.2 GHz L.O. Stability: +/-50 kHz...

USD 186.00
  • Category: All Products, C-Band LNBs, Low Noise Block LNB, Norsat

Norsat 5500R Series C-Band PLL LNB +/-50 kHz

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 3.4 - 4.2 GHz
  • L.O. Stability: +/-50 kHz
  • Noise Figure: 15K typical
  • Output Connector: F-Type Female
  • L.O. Frequency: 5.15 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 950 – 1450 MHz

Norsat 5500R Series C-Band PLL LNB +/-50 kHz

KEY SPECIFICATIONS
Product Family 5000 Series
Band C-Band
LO Type PLL
# of onboard LOs Single-band
LO Stability +/- 50 kHz
Noise Figure 15 K
Input Frequency - Band 1 C-Band: 3.70 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1450 MHz

RF SPECIFICATIONS
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset -65 dBc/Hz
Phase Noise @ 10KHz offset -80 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 62 dB typ
Input VSWR 2.3 : 1
Output VSWR 2.3 : 1
Output P1dB compression point 10 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 250 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector F-75 Ohm

M & C SPECIFICATIONS
LED Indicators None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Humidity 0 - 95%

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 190 x 115 x 78 mm
Weight 580 g
