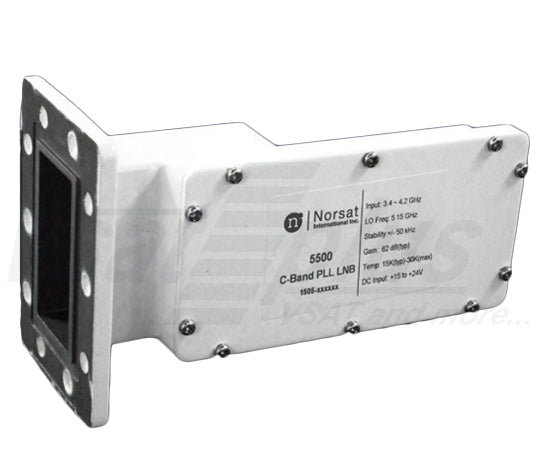

Norsat 5150R Series C-Band PLL LNB with Interference Rejection Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required Input Frequency: 3.7 - 4.2 GHz L.O. Stability: +/-150 kHz...

USD 100.00
  • Category: All Products, C-Band LNBs, Low Noise Block LNB, Norsat

Norsat 5150R Series C-Band PLL LNB with Interference Rejection

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 3.7 - 4.2 GHz
  • L.O. Stability: +/-150 kHz
  • Noise Figure: 15K typical
  • Output Connector: Type "N" or F Female
  • L.O. Frequency: 5.15 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 950 – 1450 MHz

Norsat 5150R Series C-Band PLL LNB with Interference Rejection

TYPICAL SPECIFICATIONS

KEY SPECIFICATIONS
Product Family 5000 Series
Band C-Band
LO Type PLL
# of onboard LOs Single-band
LO Stability +/- 150 kHz
Noise Figure 15 K
Input Frequency - Band 1 C-Band: 3.70 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1450 MHz

RF SPECIFICATIONS
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset -65 dBc/Hz
Phase Noise @ 10KHz offset -80 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 62 dB typ., 55 dB min., 70 dB max.
Input VSWR 2.5 : 1
Output VSWR 2.5 : 1
Output P1dB compression point 5 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 250 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector N-50 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage - 50 to + 70˚C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 190 x 115 x 78 mm
Weight 580 g
