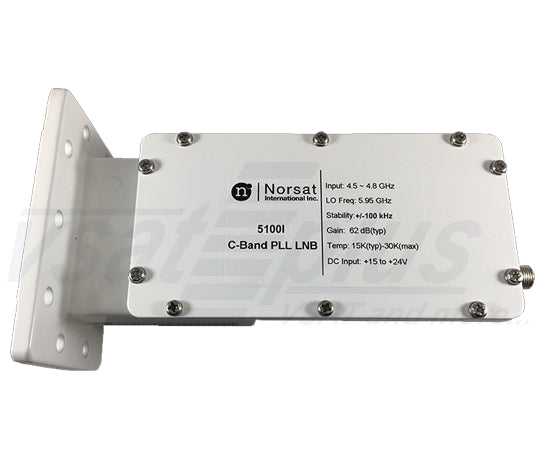

Norsat 5150I Series Insat C-Band PLL LNB +/-150 kHz

Norsat 5150I Series Insat C-Band PLL LNB +/-150 kHz

Input Type
Request for a quote

SKU: NOR-5150IF

Norsat 5150I Series Insat C-Band PLL LNB +/-150 kHz

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 4.5 - 4.8 GHz
  • L.O. Stability: +/-150 kHz
  • Noise Figure: 15K typical
  • Output Connector: Type "N" or F Female
  • L.O. Frequency: 5.95 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 1150 – 1450 MHz

Norsat 5150I Series Insat C-Band PLL LNB +/-150 kHz

TYPICAL SPECIFICATIONS

  • L.O. stability ±150 kHz, ±250 kHz
  • Noise temperature 15 K typ., 30 K max
  • Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
  • Input VSWR & Output VSWR 2.5:1
  • Conversion gain 62 dB typical 55 dB min 70 dB max
  • Output P1dB 5 dBm
  • Power requirements 12 - 24V DC supplied through center conductor of IF cable
  • Current drain 250 mA
  • Input Waveguide CPR 229G
  • Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
  • Weight 580 g / 20.5 oz
  • Temperature Range -40°C to +60°C
