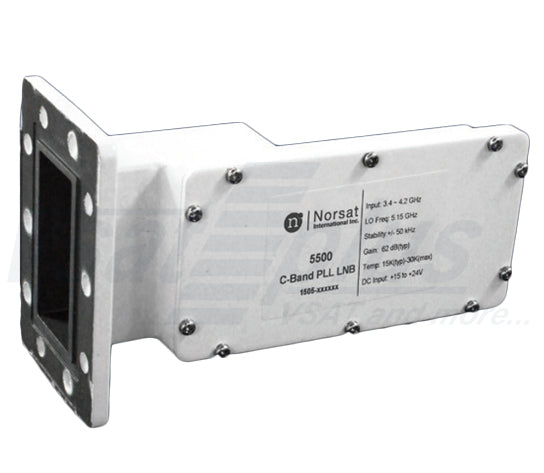

NORSAT 5100R Series C-BAND PLL LNB +/-100 KHZ with Interference Rejection Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required Input Frequency: 3.4 - 4.2 GHz L.O. Stability:...

  • Category: All Products, C-Band LNBs, Featured products, Low Noise Block LNB, Norsat

NORSAT 5100R Series C-BAND PLL LNB +/-100 KHZ with Interference Rejection

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 3.4 - 4.2 GHz
  • L.O. Stability: +/-100 kHz
  • Noise Figure: 15K typical
  • Output Connector: F-Type Female or N-Type Femalle
  • L.O. Frequency: 5.15 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 950 – 1450 MHz

TYPICAL SPECIFICATIONS

  • - L.O. stability ±50 kHz – ±100 kHz depending on model number
  • - Noise temperature 15 K typ., 30 K max.
  • - Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
  • - Input VSWR & Output VSWR 2.3:1
  • - Conversion gain 62 dB typical 55 dB min 70 dB max
  • - Output P1dB 10 dBm
  • - Power requirements 12 - 24V DC supplied through center conductor of IF cable
  • - Current drain 250 mA
  • - Input Waveguide CPR 229G
  • - Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
  • - Weight 580 g / 20.5 oz
  • - Temperature Range -40°C to +60°C
