Norsat

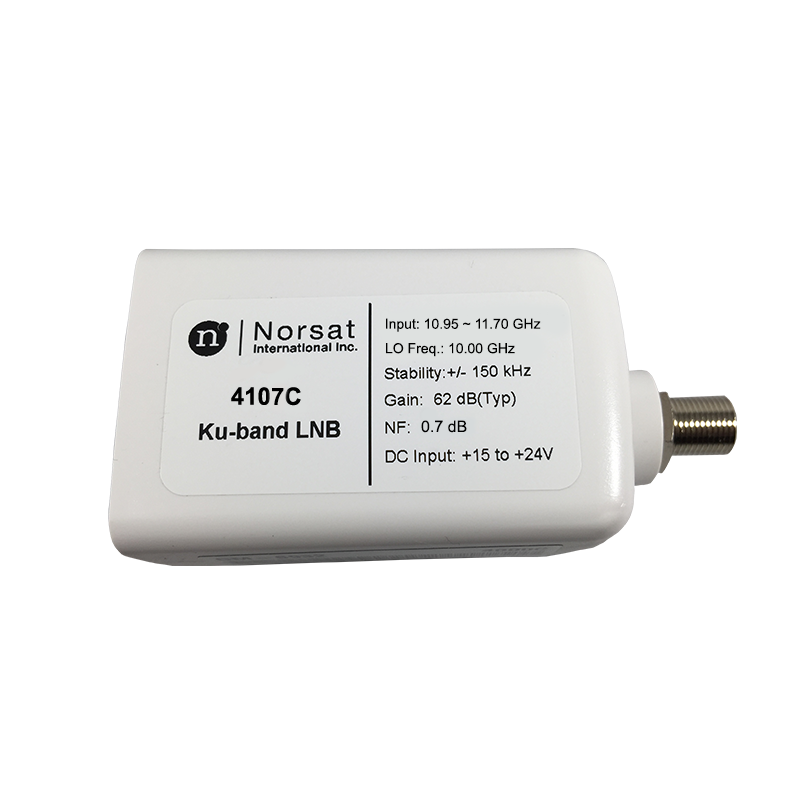

Norsat 4107CF Ku-Band DRO LNB

Norsat 4107CF Ku-Band DRO LNB

Request for a quote

SKU: 4107CF

Norsat 4107CF Ku-Band DRO LNB



  • Input Frequency: 10.95 - 11.70 GHz
  • L.O. Stability +/-150 kHz
  • Noise Figure: 0.7 dB
  • Output Connector: F-Type Female
  • L.O. Frequency: 10.00 Ghz
  • Conversion Gain: 60 dB



    A lower cost digital DRO LNB, designed with a transmitter interference filter in it, with the commercial quality to be used in VSAT and selected digital applications. The 4000 is designed to provide higher performance for VSAT and select digital applications such as:

    • Higher data rate digital video, or commercial analog
    • Some SCPC digital or analog audio options
    • Any SCPC data rate above 1 Mbps

    Norsat Advantages

    • Norsat LNBs are graded by Stability and Noise Figure to provide the perfect balance between performance and cost.
    • Compact to fit in smaller enclosure and reduce wind profile
    • Proven reliability for lower lifetime costs
    • Best DRO LO Stability to control receiver drift and employ lower bit rates or narrower space segment
    • Excellent Phase noise to lower Carrier to Noise margins, improving BER
    • Superior microphonics
    • Built-in transmitter interference filter for compact installations and lower costs
  • NORSAT 4107CF SPECIFICATIONS
    Band Ku-Band
    Input Frequency Band 1 Ku-Band: 10.95 - 11.70 GHz
    Lo Stability ±150 kHz
    Lo Type PLL
    Noise Figure 0.7 dB
    Output Frequency 1 L-Band: 950 - 1700 MHz
    Product Family 4000 Series
    RF SPECIFICATIONS
    Conversion Gain 60 dB typ
    Input VSWR 2.5 : 1
    Lo Frequency 1 10.00 GHz
    Output VSWR 2.5 : 1
    INTERFACE SPECIFICATIONS
    RF Input Connector WR-75 waveguide grooved
    RF Output Connector F-75 Ohm
    ENVIRONMENTAL SPECIFICATIONS
    Temperature Operational -40 to +60°C
    Temperature Storage -40 to +80°C
    PHYSICAL SPECIFICATIONS
    Dimensions (LxWxH) 85 x 43 x 43 mm
