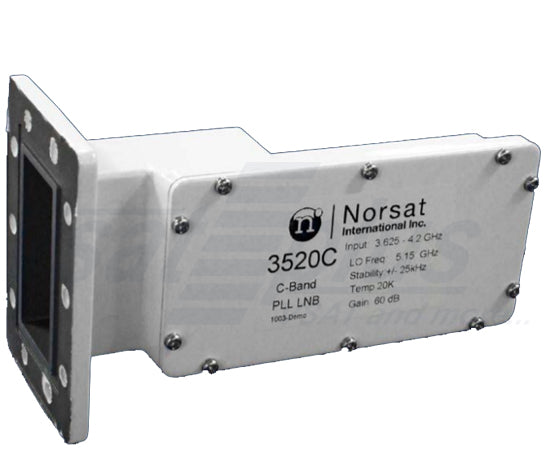

Norsat 3520C Series High Stability C-Band PLL LNB +/-25 kHz

Norsat 3520C Series High Stability C-Band PLL LNB +/-25 kHz

Input Type
Request for a quote

SKU: NOR-3520CF

Norsat 3520C Series High Stability C-Band PLL LNB +/-25 kHz

Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communication around the world.  Norsat LNBs feature:
- The industry’s best LO (Local Oscillator) stability
- High performance for any application
- Excellent availability and short lead times Stock units are available in standard and extended C-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55 GHz up to 17.7 - 18.1 GHz.

Norsat 3520C Series High Stability C-Band PLL LNB +/-25 kHz

FREQUENCY BANDS AVAILABLE

Input frequency (GHz) 3.625 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1525


TYPICAL SPECIFICATIONS

Noise temperature 20K
L.O. stability (over temperature excl offset) ±25 kHz
Phase noise (SSB)
1kHz -73 dBc/Hz
10kHz -83 dBc/Hz
100kHz -93 dBc/Hz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion gain 62 dB
Output P1dB 9 dBm
Power requirements +12 to +24 V supplied through center conductor of IF cable
Current drain 330 mA
Input Waveguide CPR229G
Dimensions 180 (L) x 100 (W) x 70 (H) mm
(7.1 x 4.0 x 2.8 in)
Weight 425 g / 15 oz
Temperature Range -40°C to +60°C
Relative Humidity 0 - 100% condensing
