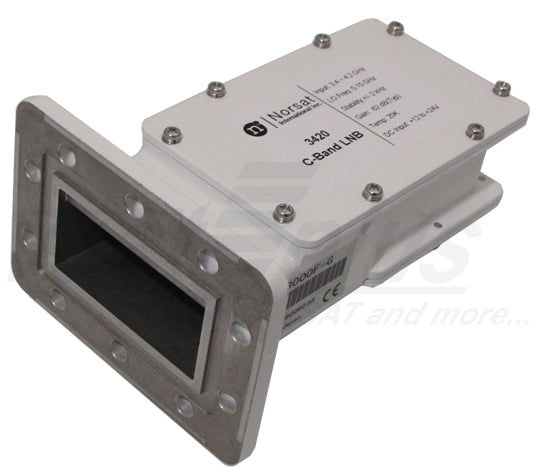

Norsat 3420 Series High Stability C-Band PLL LNB +/- 2kHz
- Input Frequency: 3.4 - 4.2 GHz
- L.O. Stability: +/-2 kHz
- Noise Temperature: 20 K
- Output Connector: F-Type Female
- L.O. Frequency: 5.15 GHz
- Conversion Gain: 62 dB
The 3000 Series is Norsat's premium quality C-Band LNB. The preferred LNB for all C-Band applications.
Applications
- Low data rate digital video
- A reference LNB for Rx test and service
- SCPC digital or analog audio applications
- Low speed SCPC data from 19.2 - 512 Kbps, or any higher data rate
Norsat Advantages
- 3 Year Warranty
- Norsat LNBs are graded by Stability and Noise Temperature to provide the perfect balance between required performance and cost
- Proven reliability for lower lifetime costs
- Excellent PLL LO stability to control receiver drift and employ lower bit rates or narrower space segment
- Excellent Phase Noise to Lower Carrier to Noise margins, improving BER
|
FREQUENCY BANDS AVAILABLE |
|
| Input frequency (GHz) | 3.40 to 4.20 |
| L.O. frequency (GHz) | 5.15 |
| Output frequency (MHz) | 950 to 1750 |
|
TYPICAL SPECIFICATIONS |
|
| Noise temperature | 20K |
| L.O. stability (over temperature excl offset) | ±2 kHz |
| Phase noise (SSB) ▼ | |
| 1kHz | -80 dBc/Hz |
| 10kHz | -85 dBc/Hz |
| 100kHz | -95 dBc/Hz |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.2 : 1 |
| Conversion gain | 62 dB |
| Output P1dB | 9 dBm |
| Power requirements | +12 to +24 V supplied through center conductor of IF cable |
| Current drain | 250 mA |
| Input Waveguide | CPR229G |
| Dimensions | 144 (L) x 70 (W) x 98 (H) mm |
| (5.7 x 2.8 x 3.9 in) | |
| Weight | 500 g / 17.6 oz |
| Temperature Range | -40°C to +60°C |
| Relative Humidity | 0 - 100% condensing |
