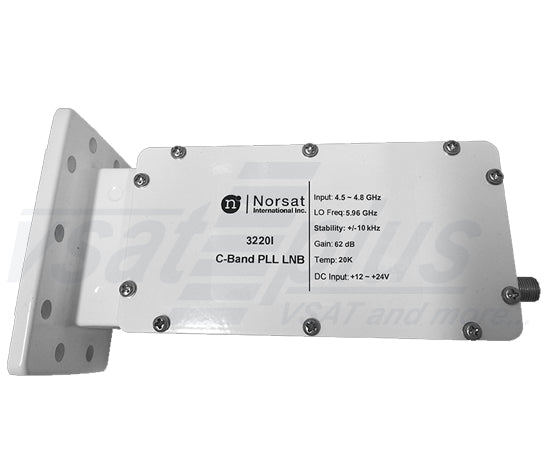

Norsat 3220I Series Insat C-Band PLL LNB ±10 kHz

Norsat 3220I Series Insat C-Band PLL LNB ±10 kHz

C-Band PLL LNB

Norsat 3220I Series Insat C-Band PLL LNB ±10 kHz Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required Input Frequency: 4.5 – 4.8 GHz Local Frequency: 5.95...

  • Category: All Products, C-Band LNBs, Low Noise Block LNB, Norsat

Norsat 3220I Series Insat C-Band PLL LNB ±10 kHz

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 4.5 – 4.8 GHz
  • Local Frequency: 5.95 GHz
  • Output Frequency: 1150 – 1450 MHz
  • Local Stability: ±10 kHz
  • Noise Temperature: 20K
  • Output Connector: Type "N" or F Female

Norsat 3220I Series Insat C-Band PLL LNB ±10 kHz

Model
  • Norsat 3220I
  • Norsat 3220IF
  • Norsat 3220IN
Input Frequency
  • 4.5 - 4.8 GHz
Local Frequency
  • 5.95 GHz
Local Stability
  • ±10 kHz
Noise Temperature
  • 20K
Output Frequency
  • 1150 - 1450 MHz
Phase Noise
  • -73 dBc/Hz @ 1 kHz
  • -83 dBc/Hz @ 10 kHz
  • -93 dBc/Hz @ 100 kHz
Input VSWR
  • 2.2:1
Output VSWR
  • 2.2:1
Gain
  • 62 dB
Output P1dB
  • 9 dBm
Power
  • 12 - 24V DC supplied through center conductor of IF cable
Current Drain
  • 330 mA
Input Waveguide
  • CPR 229G
Temperature Range
  • -40°C to +60°C
Dimensions
  • 7.1 x 4.0 x 2.8 Inches
Weight
  • 15 oz
