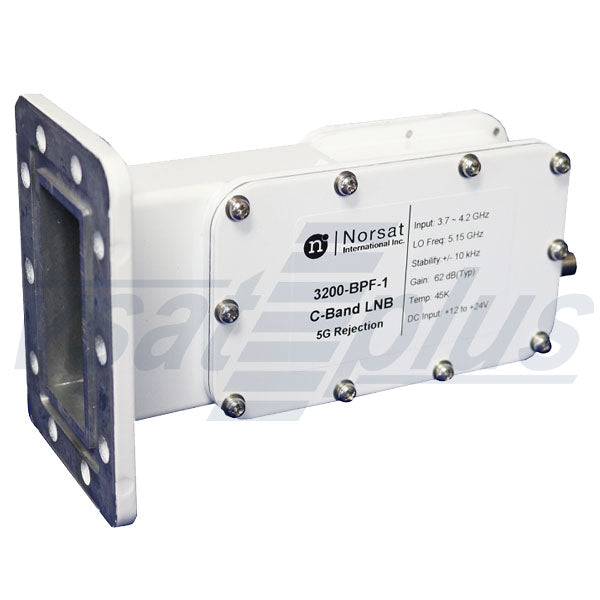

Norsat 3200F-BPF-1 C-Band LNB and Band Pass Filter
Not Specified
C-Band PLL LNB
Norsat
0.907 kg
Norsat’s Low Noise Block downconverter plus Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3200-BPF Series.
| KEY SPECIFICATIONS | |
| Product Family | 3000 Series |
| Band | C-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | ± 25 kHz max. |
| Noise Figure | 60K |
| Input Frequency - Band 1 | C-Band: 3.70 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | -80 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 55 - 70 dBm |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 9 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 400 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | - 40 to + 80°C |
| PHYSICAL SPECIFICATIONS | |

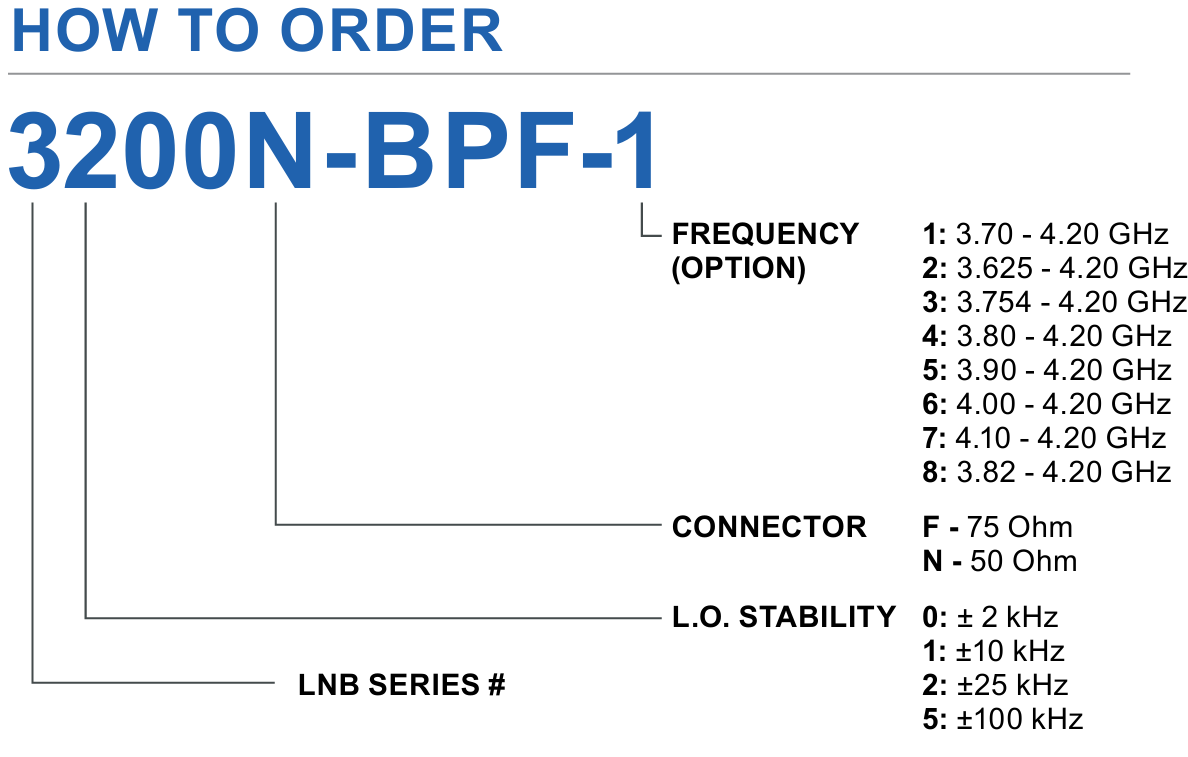

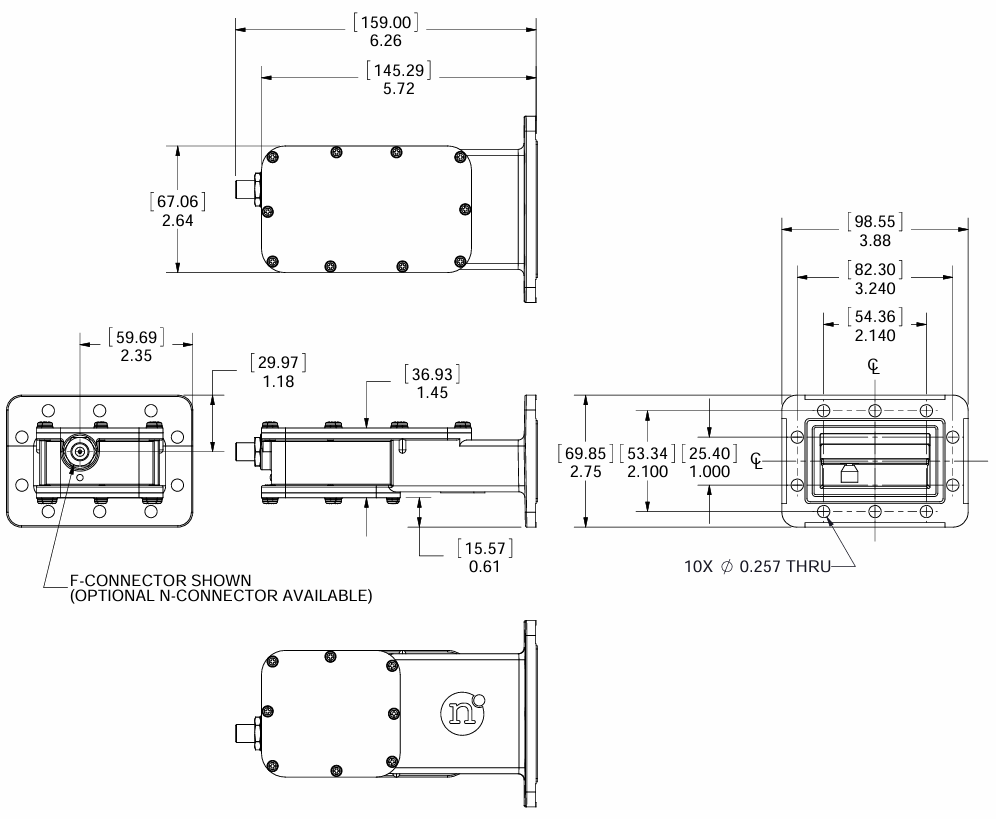

| Dimensions (L x W x H) | 159 x 98.5 x70 mm |
| Weight | 500 g |
