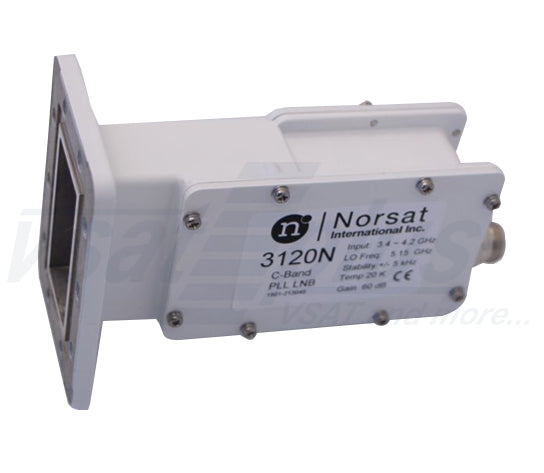

Norsat 3120 Series High Stability C-Band PLL LNB ±5 kHz

FEATURES

  • Input Frequency: 3.40 - 4.20 GHz
  • L.O. Stability: 1.0 ppm ±5 kHz
  • Noise Temperature: 20 K
  • Output Connector: N-Type Female/F-Type Male
  •

    The 3000 Series is Norsat's premium quality C-Band LNB. The preferred LNB for all C-Band applications.

    Applications

    • Low data rate digital video
    • A reference LNB for Rx test and service
    • SCPC digital or analog audio applications
    • Low speed SCPC data from 19.2 - 512 Kbps, or any higher data rate

    Norsat Advantages

    • 3 Year Warranty
    • Norsat LNBs are graded by Stability and Noise Temperature to provide the perfect balance between required performance and cost
    • Proven reliability for lower lifetime costs
    • Excellent PLL LO stability to control receiver drift and employ lower bit rates or narrower space segment
    • Excellent Phase Noise to Lower Carrier to Noise margins, improving BER

    FREQUENCY BANDS AVAILABLE

    Input frequency (GHz) 3.40 to 4.20
    L.O. frequency (GHz) 5.15
    Output frequency (MHz) 950 to 1750


    TYPICAL SPECIFICATIONS

    Noise temperature 20K
    L.O. stability (over temperature excl offset) ±5 kHz
    Phase noise (SSB)
    1kHz -80 dBc/Hz
    10kHz -85 dBc/Hz
    100kHz -95 dBc/Hz
    Input VSWR 2.2 : 1
    Output VSWR 2.2 : 1
    Conversion gain 62 dB
    Output P1dB 9 dBm
    Power requirements +12 to +24 V supplied through center conductor of IF cable
    Current drain 250 mA
    Input Waveguide CPR229G
    Dimensions 144 (L) x 70 (W) x 98 (H) mm
    (5.7 x 2.8 x 3.9 in)
    Weight 500 g / 17.6 oz
    Temperature Range -40°C to +60°C
    Relative Humidity 0 - 100% condensing
