Norsat 3025XI Series Ext. Ref. C-Band PLL LNB Input Frequency: 4.5 – 4.8 GHz Local Frequency: 5.76 GHz Output Frequency: 960 – 1260 MHz Local Stability: Phase Locked to Ext. Ref. Noise Temperature: 25K Typical Specifications Noise temperature 25 K to...

  • Category: All Products, C-Band LNBs, Low Noise Block LNB, Norsat

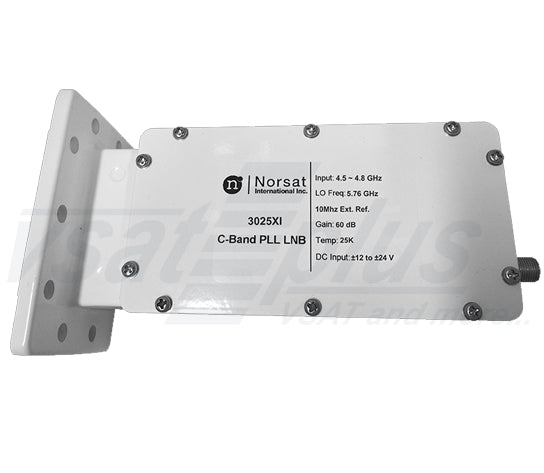

Norsat 3025XI Series Ext. Ref. C-Band PLL LNB

  • Input Frequency: 4.5 – 4.8 GHz
  • Local Frequency: 5.76 GHz
  • Output Frequency: 960 – 1260 MHz
  • Local Stability: Phase Locked to Ext. Ref.
  • Noise Temperature: 25K

Norsat 3025XI Series Ext. Ref. C-Band PLL LNB

Typical Specifications
Noise temperature 25 K to 35 K
depending on model number
L.O. stability Phase Locked
to External Reference
Phase noise (SSB) -73 dBc/Hz at 1 kHz
-83 dBc/Hz at 10 kHz
-95 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion gain 60 dB
Output P1dB 5 dBm
Power requirements ±12 to ±24 V supplied through
center conductor of IF cable
Current drain 300 mA
Input Waveguide CPR229G
Dimensions 180 (L) x 100 (W) x 70 (H) mm
(7.1 x 4.0 x 2.8 in)
Weight 425g / 15 oz
Ext. Ref. Frequency 10 MHz (sine-wave)
-10 to 0 dBm
Temperature Range -40°C to +60°C
Frequency Bands Available
Input frequency (GHz) 4.5 to 4.8
L.O. frequency (GHz) 5.76
Output frequency (MHz) 960 to 1260
