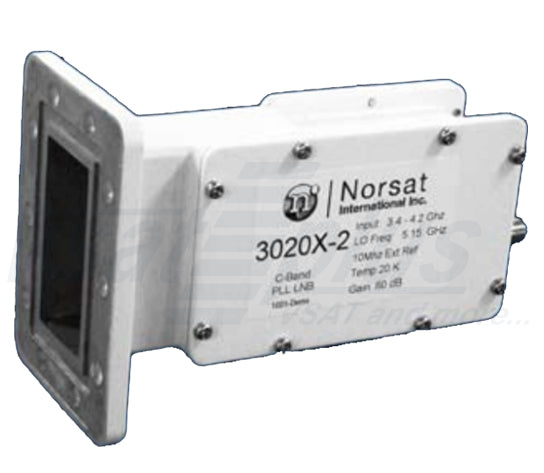

Norsat 3020X-2 Series C-Band Ext. Ref. PLL LNB

  • Input Frequency Range: 3.4-4.2 GHz
  • L.O. Stability: Phase Locked to External Reference.
  • Noise Temperature: 20°K.
  • Output Connector: Type N Female or F Female
  • L.O. Frequency: 5.15 GHz.
  • Conversion Gain: 62 dB.
  • Gain Variation: 1 dB p-p max per 36 MHz segment across the operating freq band

Norsat 3020X-2 Series C-Band Ext. Ref. PLL LNB

FREQUENCY BANDS AVAILABLE

Input frequency (GHz) 3.40 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1750


TYPICAL SPECIFICATIONS

Noise temperature 20K
L.O. stability (over temperature excl offset) Phase Locked to External Reference
L.O. Leakage -45 dBm max @ Waveguide input
Phase noise (SSB)
1kHz -75 dBc/Hz
10kHz -85 dBc/Hz
100kHz -95 dBc/Hz

Requirement for Ext. Ref Supplied through center conductor of IF cable
Frequency 10 MHz (sine wave)
Input Level
0 to -10 dBm @ IF out

Phase noise
1kHz -144 dBc/Hz max
10kHz -154 dBc/Hz max
100kHz -154 dBc/Hz max

Input VSWR 2.3 : 1
Output VSWR 2.0 :1 (2.5:1 @ 75 Ω)
Gain Ripple 1 dB p-p max per 36 MHz segment across the operating freq. band
Image Rejection -45 dBc max.
Spurious in Rx band -130 dBm max @ waveguide input excluding Rx out + 1 MHz measured at RF input power -85 dBm
Conversion gain 62 dB
Output P1dB 10 dBm
Power requirements +12 to +24 V supplied through center conductor of IF cable
Current drain 300 mA
Input Waveguide CPR229G
Dimensions 144 (L) x 70 (W) x 98 (H) mm
(5.7 x 2.8 x 3.9 in)
Weight 580 g / 18 oz
Temperature Range -40°C to +60°C
Storage Temperature -40°C to +80°C
