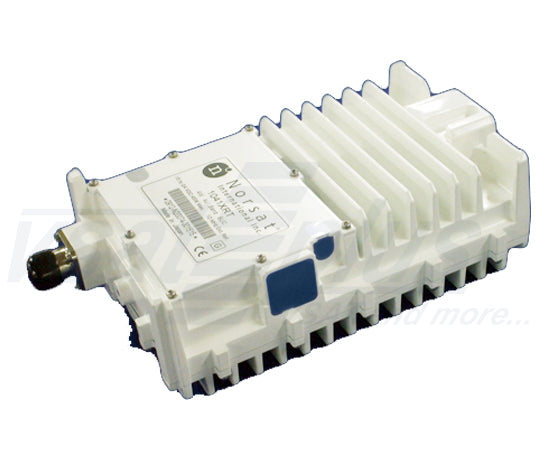

Norsat 1041XRTS 4W Selectable Ku-Band BUC

Norsat 1041XRTS 4W Selectable Ku-Band BUC

4W Ku-Band BUCs

Norsat 1041XRTS 4W Selectable Ku-Band Block Upconverter The Norsat 1041XRT Series 4W BUC now offers easy selectability between Standard (14.0 - 14.50 GHz) and Extended Ku-Band (13.75 - 14.50 GHz). LO Frequency 12.80 or 13.05 GHz, input frequency 950 to...

  • Category: All Products, Block Upconverter BUC, Ku-Band Block Upconverter BUC, Norsat

Norsat 1041XRTS 4W Selectable Ku-Band Block Upconverter

The Norsat 1041XRT Series 4W BUC now offers easy selectability between Standard (14.0 - 14.50 GHz) and Extended Ku-Band (13.75 - 14.50 GHz). LO Frequency 12.80 or 13.05 GHz, input frequency 950 to 1450 MHz

The Element series block upconverters (BUCs) are among the smallest, lightest, and most energy efficient transmitters available. Their high efficiency reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

Key Features
  • Small size, ideal for feed mounting
  • 18 frequency options available
  • RoHS Compliant
  •

    Configurations

    Model

    1041XRTSF

    F-Connector

    1041XRTSN

    Type-N Connector

    Output frequency (mHz)

    13.75 – 14.5 GHz

    13.75 – 14.5 GHz

    l.O. frequency (GHz)

    12.80 GHz & 13.05 GHz

    12.80 GHz & 13.05 GHz

    input frequency (GHz)

    950 – 1700 MHz

    950 – 1700 MHz


    Highly Versatile
  • Element BUCs are ideal for applications such as:
  • Fixed VSAT Antennas
  • Comms on the Move
  • Mobile Terminals
  • Maritime Vessels
  • Unmanned ISR (intelligence, surveillance and reconnaissance)
  •

    Outline Dimensions

    Norsat 1041XRTS 4W Selectable Ku-Band BUC

    TYPICAL SPECIFICATIONS

    Output frequency

    13.75 to 14.50 GHz
    (14.00 to 14.50 GHz)

    Input frequency

    950 to 1700 MHz
    (950 to 1450 MHz)

    LO frequency

    12.8 GHz (13.05 GHz)

    P1dB Output Power

    36 dBm

    Input VSWR

    2 : 1

    Output VSWR

    2.1 : 1

    Phase noise

    -70 dBc/Hz at 1 kHz
    -80 dBc/Hz at 10 kHz
    -90 dBc/Hz at 100 kHz

    External reference signal frequency

    10 MHz

    Power Requirements

    +15 to +24V supplied through center conductor of IF cable

    Power consumption

    45 W

    Output Waveguide

    WR75 - grooved

    Dimensions

    228 (L) x 125 (W) x 65 (H) mm

    (9.0 x 4.9 x 2.6 in)

    Weight

    1.9 kg / 4.2 lb

    External reference level

    -5 to +5 dBm

    10 MHz external reference phase noise

    -135 dBc/Hz at 100 Hz

    -140 dBc/Hz at 1 kHz

    -150 dBc/Hz at 10 Hz

    Gain (including variation over temperature and frequency)

    50 dB min

    60 dB max

    Gain stability over temperature

    ±2.25 dB at any constant frequency

    Gain stability in-band at any constant temperature

    ±1.0 dB in any 54 MHz band

    ±3.0 dB over full 750 MHz band

    Temperature Range

    -40°C to +55°C
