Norsat 1021XRTFH 2W Ku-Band Non-Inverted BUC

Not Specified

1W - 3W Ku-Band BUCs

Norsat

2.0 kg

1021XRT 2W NON-INVERTED BLOCK UPCONVERTER Norsat Block Up-Converters offer state-of-art performance and reliability in a small, lightweight, package for demanding VSAT applications, such as: - Point-of-Sale and Inventory Control - Information/Data Distribution and Access - Telecommuting and Tele-Education - Portable, Monitoring and Emergency Communications - DVB Network return paths NORSAT...
-
+
USD 97.00 from USD 75.00
USD 75.00
Add to wishlist

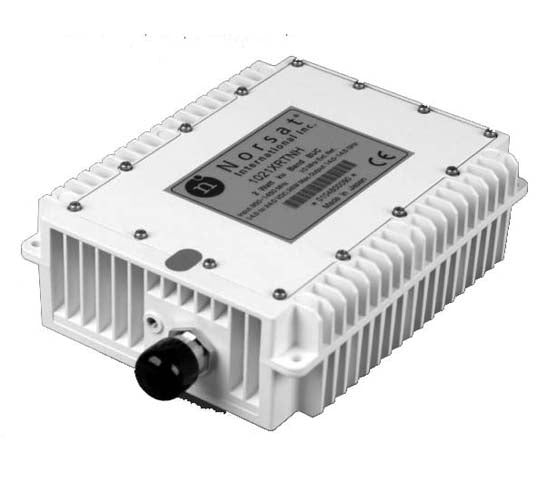

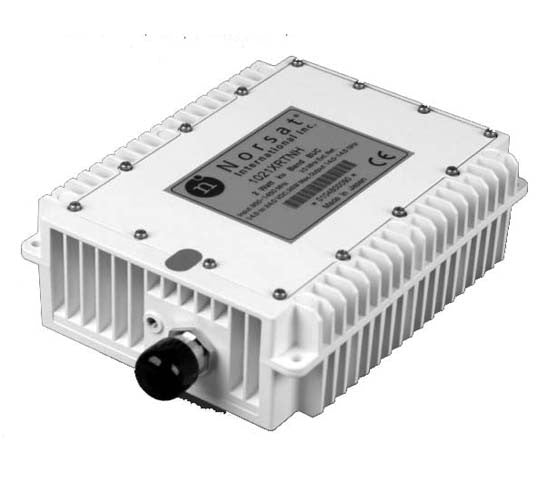

1021XRT 2W NON-INVERTED BLOCK UPCONVERTER

Norsat Block Up-Converters offer state-of-art performance and reliability in a small, lightweight, package for demanding VSAT applications, such as:

  • - Point-of-Sale and Inventory Control
  • - Information/Data Distribution and Access
  • - Telecommuting and Tele-Education
  • - Portable, Monitoring and Emergency Communications
  • - DVB Network return paths

    NORSAT ADVANTAGES

    • - Small, lightweight package for low-cost, direct-to-feed mounting
    • - Low in-Band noise emissions for up to 100 times improved system capacity
    • - Power efficient for remote site applications
    • - Single cable L-Band Interface with 10MHz reference and 14.5-24 VDC power supply for simple installation
    • - Next generation single RF board design and advanced MMICs for greater reliability
    • - 30 dBm (1010XRT) and 33 dBm (1020XRT) minimum output power under all operating conditions for reliable uplink performance
    • - Temperature compensated gain control for constant performance over dynamic conditions
    • - Integrated lock detector shuts off transmitter in the event of cable cut or IDU failure for safe, compliant operation
    • - Manufactured span in Japan
    • CE and ETSI EN 301 428 (2000-05) compliance for global applications



      1021XRTFH MECHANICAL DRAWING

      SPECIFICATION

      Output frequency  14.00 to 14.50 GHz
      Input frequency  950 to 1450 MHz
      Output P1dB minimum  33.0 dBm
      L.O. frequency  13.05 GHz
      Input VSWR maximum  2.0 : 1
      Output VSWR maximum  2.1 : 1
      Phase noise (SSB) maximum  -70 dBc/Hz at 1 kHz
      -80 dBc/Hz at 10 kHz
      -90 dBc/Hz at 100 kHz
      External reference signal frequency  10 MHz
      Power requirements  +14.5 to +24V supplied through
      center conductor of IF cable

      Power consumption maximum  26 W
      Dimensions  176 (L) x 124 (W) x 52 (H) mm
      (6.9 x 4.9 x 2.0 in)
      Weight  1.8 kg / 4.0 lb
      External reference level  -5 to + 5 dBm
      10 MHz external reference
      phase noise maximum
      -125 dBc/Hz at 100 Hz
      -135 dBc/Hz at 1 kHz
      -140 dBc/Hz at 10 kHz
      Gain (including variation over
      temperature and frequency)
      50 dB min
      60 dB max
      Gain stability over temperature  ±2.25 dB at any constant frequency
      Gain stability in-band at
      any constant temperature
      ±1.0 dB in any 54 MHz band
      ±2.25 dB over full 500 MHz band
