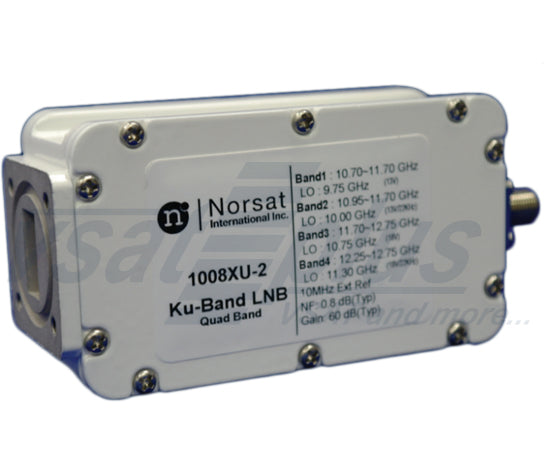

Norsat 1008XUN Quad-Band External Reference LNB

Frequency Bands:
- Band 1 - 10.7 to 11.7 GHz
- Band 2 - 10.95 to 11.7 GHz
- Band 3 - 11.7 to 12.75 GHz
- Band 4 - 12.20 to 12.75 GHz
LO Frequencies:
- Band 1 - 9.75 GHz
- Band 2 - 10.00 GHz
- Band 3 - 10.75 GHz
- Band 4 - 11.25 GHz
IF Frequencies:
- Band 1 - 950 to 1950 MHz
- Band 2 - 950 to 1700 MHz
- Band 3 - 950 to 2000 MHz
- Band 4 - 950 to 1500 MHz
Noise Figure: 0.8 dB
Output Connector: Type F female or N female

1008XU Mechanical Drawing 1008XU Mechanical Drawing

TYPICAL SPECIFICATIONS

Noise Figure: .8 dB

LO stability: Phase locked to External Reference

LO Phase noise: -73 dBc at 1 kHz, -78 dBc at 10 kHz, -100 dBc at 100 kHz, -110 dBc at 1 MHz

Gain: 60 dB

Output P1dB: +15 dBm

DC Power: Band 1 13 V, Band 2 13 V / 22 KHz Tone, Band 3 18 V, Band 4 18 V / 22 KHz Tone

Current: 350 mA

Specs for Tone: Freq 22 kHz ±4 kHz

Amp: 0.6 ±0.2 V

Duty Cycle: 50% ±10%

Input Waveguide: WR-75

Output: (waterproof) F-connector (75 ohm), Type-N (Optional) (50 ohm)

Dimensions: 138 x 70 x 44 (L x W x H)

Weight: 300 g

Operating Temperature: -30 to +60C

Storage Temperature: -40 to +80C

External Ref Freq: 10 MHz (sine-wave), -10 to 0 dBm



QUAD-BAND KU FREQUENCY BANDS



Band 1

Band 2

Band 3

Band 4

Frequency Band (RF Input)

10.7 ~ 11.7 GHz

10.95 ~ 11.7 GHz

11.7 ~ 12.75 GHz

12.20 ~ 12.75 GHz

LO Frequency

9.75 GHz

10.00 GHz

10.75 GHz

11.25 GHz

IF Frequency

950 ~ 1950 MHz

950 ~ 1700 MHz

950 ~ 2000 MHz

950 ~ 1500 M
