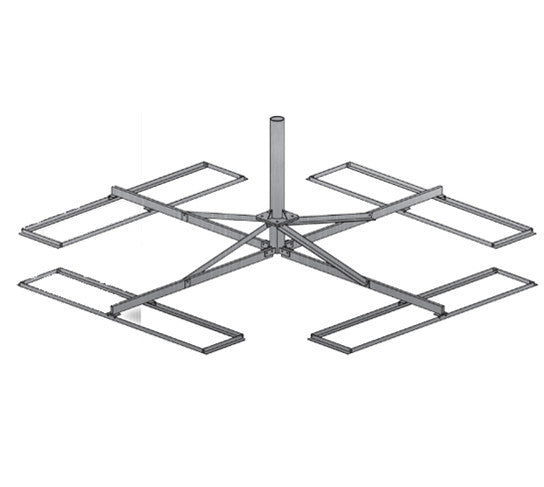

Non-penetrating Mast Mount Suitable for 1.8m Ku-Band

Non-penetrating Mast Mount Suitable for 1.8m Ku-Band

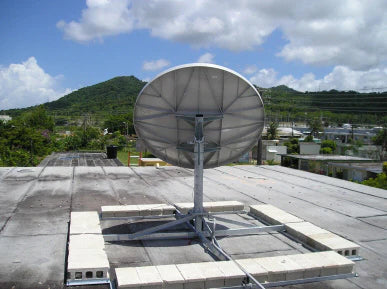

Application: Roof-Top or Ground

Type: Non-Penetrating, Flat Surface

Uses: Satellite up to 1.8M Wireless Other Applications

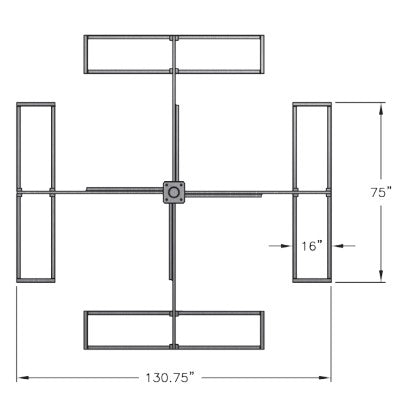

Footprint: 10.9' x 10.9' = 118.8 sq ft

Finish: Hot Dip Galvanized

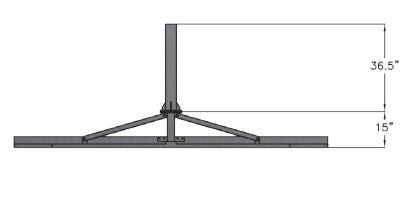

Satellite Mast Sizes: 2.88" O.D. to 5.56" O.D. 3.0' Height (Mount Height = 4.25')

Wireless / Other Application 2.88" O.D. to 4.50" O.D. Mast Sizes: 3.0' to 9.0' Height (Mount Height = 4.25' to 10.25')

Ballast: Up to 32 Standard Concrete Blocks ( 8" x 8" x 16")

Shipping: Freight Bulk Shipments - 9 or 12 Crated Units per Palle
