New Japan Radio

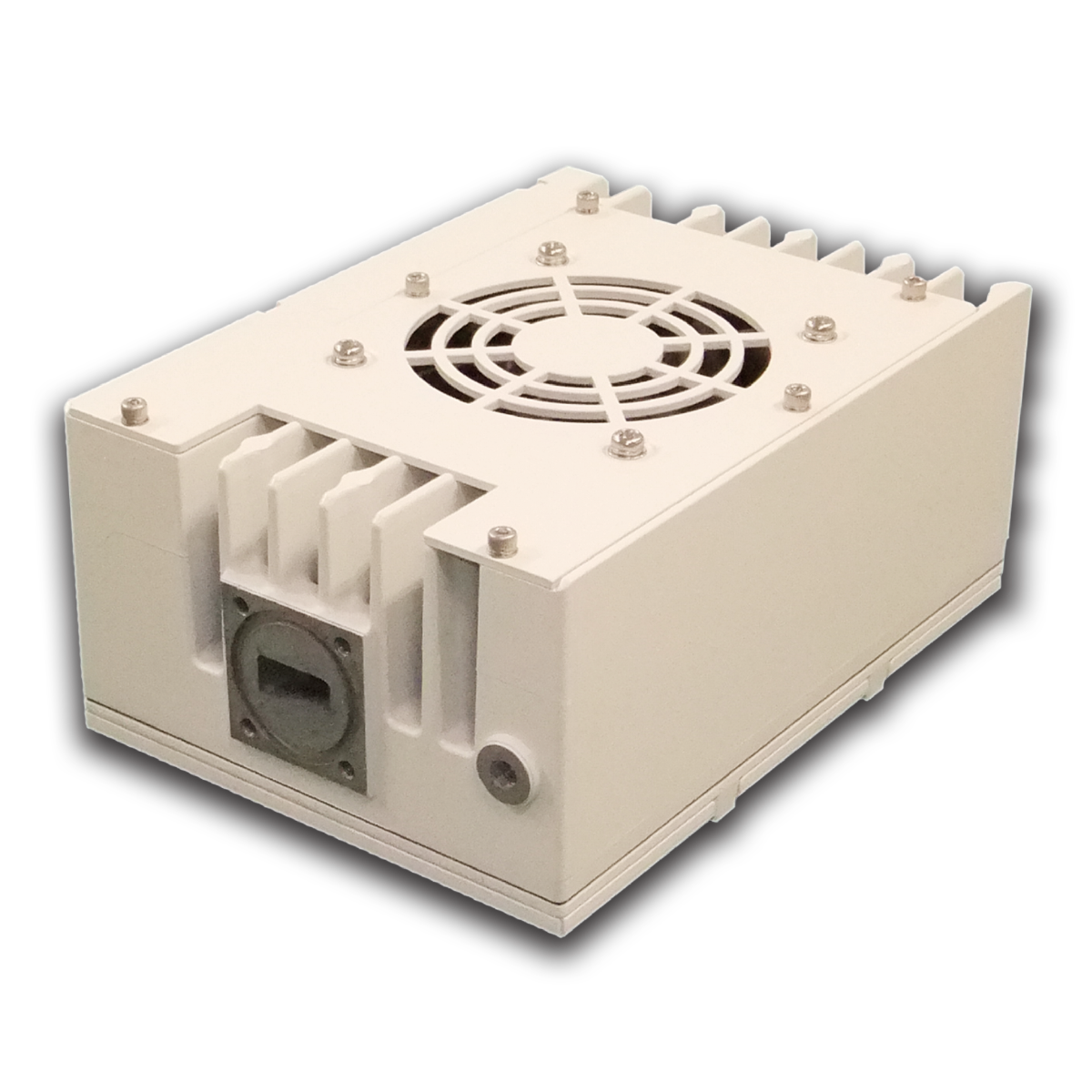

NJT8319UNMR 16W Universal Ku-Band BUC

NJT8319UNMR 16W Universal Ku-Band BUC

Request for a quote

NJRC NJT8319UNMR 16W Universal Ku-Band BUC (13.75 to 14.5 GHz)

  • High Temperature Operating
    • Operation Guarantee Temperature Range: -40 to +75 degree C
  • RF Frequency Line-up
    • Universal Ku-Band: 13.75 to 14.5 GHz
  • High Efficiency Output Power (16W Model)
    • P1dB: +42 dBm min. over temperature
    • Power Consumption: 170 W max.
    • IM3: -28 dBc @ Pout <= +39 dBm
  • FSK Modulation M&C
  • Smallest Size & Lightest Weight
    • Dimension: 180 (L) x 130 (W) x 80 (H) mm
    • Weight: 2.4 kg

NJT8319UN OUTLINE
NJT8319UF



NJT8319UN OUTLINE DRAWING
NJT8319UN

NJT8319UF Specifications
RF Frequency 13.75 to 14.50 GHz
LO Frequency 12.80 GHz
Output Power @ P1dB 16W Linear (+42 dBm min.)
IF Connector Type N female
Voltage Input Port MS Connector
FSK Communication M&C
Linear Gain 68 dB nom., 62 dB min.
Gain Variation over frequency 5 dBp-p max. over 750 MHz / 2 dBp-p max. over 36 MHz
Gain Stability over temperature 2 dBp-p typ., 5 dBp-p max.
IM3 -28 dBc typ., -24 dBc max. @ total power ≤Pout – 3dB
ACPR -28 dBc typ. @ Pout ≤Pout – 1dB
L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz
Input V.S.W.R. 2 : 1 max.
Output V.S.W.R. 2 : 1 max.
DC Power Requirement
    (1) Voltage Range
    (2) Power Consumption
        @ No IF Signal
        @ P1dB

+36 to +60 VDC

140 W typ.
170 W. max.
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
LED Indicator GREEN: L.O. locked / RED: L.O. unlocked (or no 10 MHz reference signal)
M&C Function FSK Modulation M&C: Power Monitor / TX On/Off Control / Alarm … etc
Temperature Range (ambient)
    Operating

    Storage

-40 to +75 C (Operation Guarantee)
-40 to +55 C (Performance Guarantee)
-40 to +75 C
Dimension & Housing 180 (L) x 130 (W) x 80 (H) mm [7.09” (L) x 5.12” (W) x 3.15” (H)] without interface connector and screws
Weight 2.4 kg max. [5.3 lbs max.]


 NJRC NJT8319UNMR 16W Universal Ku-Band BUC Datasheet
