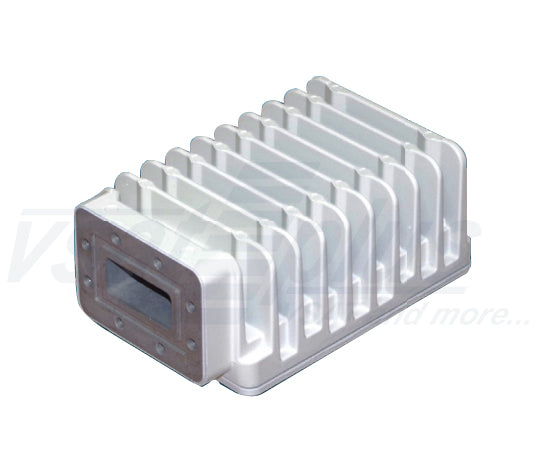

Nisshinbo NJT8105 series Insat C-band 5W mini-BUC
Nisshinbo NJT8105 series Insat C-band 5W mini-BUC
SKU:
Regular price
USD 463.00
Regular price
Sale price
USD 463.00
Couldn't load pickup availability
Features
Frequency Organization
- RF Frequency: 5.85 to 6.425 GHz
- IF Frequency: 950 to 1,525 MHz
- LO Frequency: 4.9 GHz
High Efficiency Output Power
- P1dB: +37 dBm min. over temperature
- Power Consumption: 40 W
Small Size & Light Weight
- Weight: 1.37 kg
Others
- LED Indicator Equipped
- RoHS Compliance
Series Line-up
| Model No. | RF Frequency | Output Power | IF Connector |
| NJT8105N | 5.85 to 6.425 GHz | +37 dBm min. @ P1dB (5W) | N-type (50Ω) |
|---|---|---|---|
| NJT8105F | F-type (75Ω) |
Compatibility & quotations
Compatibility & quotations
Contact our team with your required frequency band, power rating, quantity and delivery destination. Discuss your requirements.
