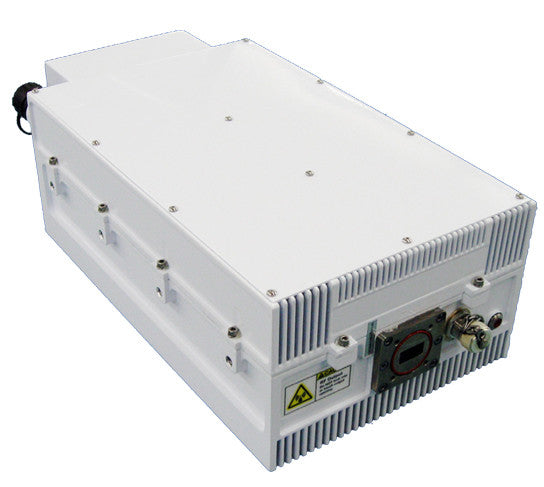

NJRC NJT5326N 100W Standard Ku-Band Block Upconverter

FEATURES

  • Solid State Power Amplifier (SSPA)
  • High Efficiency & Low Distortion
  • P1dB: +49 dBm min. over temperature
  • IM3: -25 dBc max. @ Pout = +46 dBm
  • Power Consumption: 650 W
  • Selectable RF Frequency Band
  • Standard Ku-band: 14.00 to 14.50 GHz
  • AC Power Operating
  • Analog & Digital (RS-485) M&C
Model No.
RF
Frequency
Local
Frequency
IF
Frequency
Output Power
@ P1dB
Power Supply
NJT5326NAC
14.00 to 14.50 GHz
(Standard Ku-band)
13.05 GHz
950 to 1,450 MHz
100W Linear
(+49 dBm min.)
AC power
NJT5356NAC
13.75 to 14.50 GHz
(Universal Ku-band)
12.80 GHz
950 to 1,700 MHz
Item
Specifications
Output Interface
Waveguide, WR75
Input Interface
[IF / Ref.]
 N-type, female connector (50 ohm)

[Power]
(4 pin) connector
[M&C]
19 pin connector
Output Power @ 1dB G.C.P.
+49 dBm min. over temperature
Linear Gain
70 dB Nominal
Power Requirement/Consumption
90 to 264 VAC / 650 W typ., 670 VA typ. @ Pout = +49 dBm
Monitor and Control
[Analog]
Function: Summary Alarm, Tx Control Enable/Disable

[Digital]
Interface: RS-485
Function: RF Power Monitor, Alarm(Summary, Local Unlock, Over Temp.)
TX ON/OFF, Step Attenuator
Weight
11.5 kg [24 lbs]
