Features
Frequency Organization
- RF Frequency: 12.2 to 12.75 GHz
- IF Frequency: 950 to 1,500 MHz
- LO Frequency: 11.25 GHz
Low Noise Performance
- Noise Figure (NF): 0.8 dB typ., 1.0 dB max.
LO Frequency Stability Line-up
- L-type: +/- 50 ppm (+/- 500 kHz typ.)
- H-type: +/- 10 ppm (+/- 100 kHz typ.)
- S-type: +/- 3 ppm (+/- 30 kHz typ.)
- U-type: +/- 1 ppm (+/- 10 kHz typ.)
- V-type: +/- 0.5 ppm (+/- 5 kHz typ.)

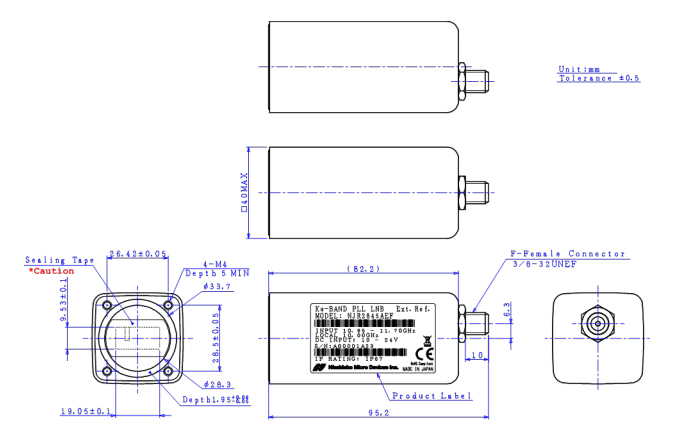

Small Size & Light Weight
- Weight: F-type 210 g / N-type 240 g
Others
- RoHS Compliance
Series Line-up
Model No. | RF Frequency | ReferencE-type | LO Frequency Stability | IF Connector |
NJR2845GLF | 12.2 to 12.75 GHz | Internal Ref. | +/- 50 ppm (+/- 500 kHz typ.) |
F-type (75Ω) |
---|---|---|---|---|
NJR2845GLN | N-type (50Ω) | |||
NJR2845GHF | +/- 10 ppm (+/- 100 kHz typ.) |
F-type (75Ω) | ||
NJR2845GHN | N-type (50Ω) | |||
NJR2845GSF | +/- 3 ppm (+/- 30 kHz typ.) |
F-type (75Ω) | ||
NJR2845GSN | N-type (50Ω) | |||
NJR2845GUF | +/- 1 ppm (+/- 10 kHz typ.) |
F-type (75Ω) | ||
NJR2845GUN | N-type (50Ω) | |||
NJR2845GVF | +/- 0.5 ppm (+/- 5 kHz typ.) |
F-type (75Ω) | ||
NJR2845GVN | N-type (50Ω) |
