New Japan Radio

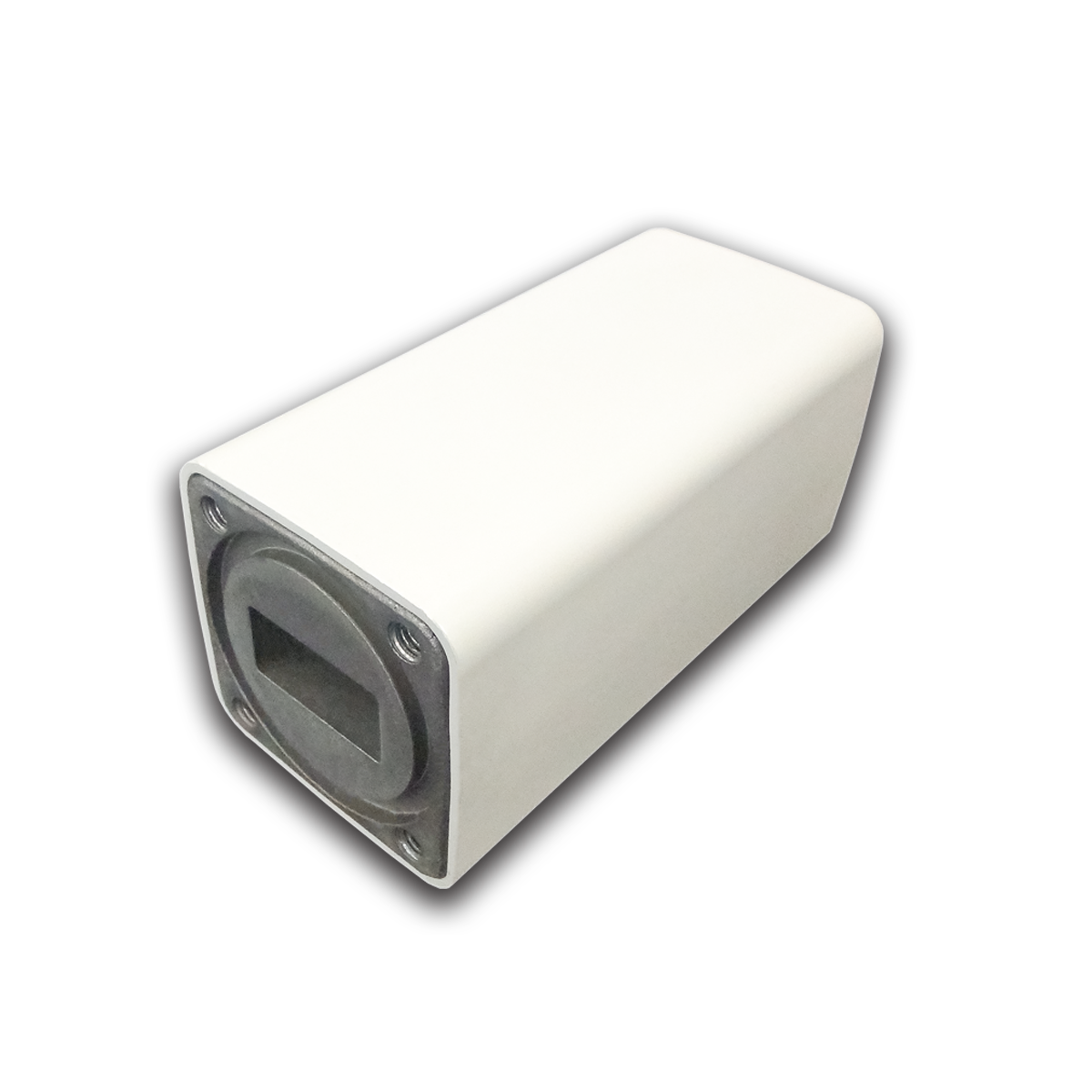

NJR2845DLN Ku-band PLL LNB | VSATPlus

NJR2845DLN Ku-band PLL LNB | VSATPlus

Request for a quote

Features

Frequency Organization

  • RF Frequency: 11.2 to 11.7 GHz
  • IF Frequency: 950 to 1,450 MHz
  • LO Frequency: 10.25 GHz

Low Noise Performance

  • Noise Figure (NF): 0.8 dB typ., 1.0 dB max.

LO Frequency Stability Line-up

  • L-type: +/- 50 ppm (+/- 500 kHz typ.)
  • H-type: +/- 10 ppm (+/- 100 kHz typ.)
  • S-type: +/- 3 ppm (+/- 30 kHz typ.)
  • U-type: +/- 1 ppm (+/- 10 kHz typ.)
  • V-type: +/- 0.5 ppm (+/- 5 kHz typ.)

Small Size & Light Weight

  • Weight: F-type 210 g / N-type 240 g

Others

  • RoHS Compliance



Series Line-up

Model No. RF Frequency ReferencE-type LO Frequency Stability IF Connector
NJR2845DLF 11.2 to 11.7 GHz Internal Ref. +/- 50 ppm
(+/- 500 kHz typ.)
F-type (75Ω)

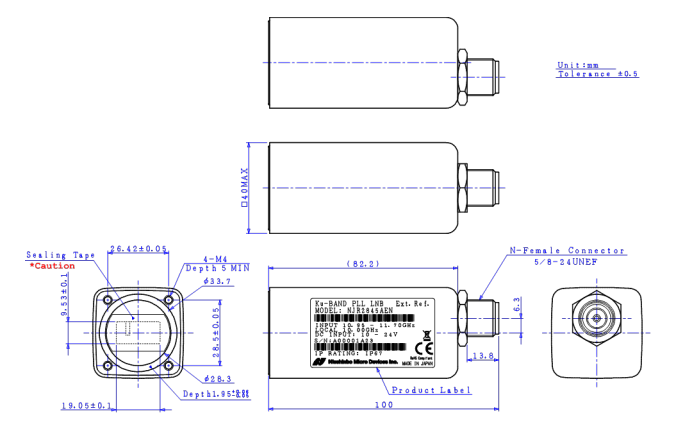

NJR2845DLN N-type (50Ω)
NJR2845DHF +/- 10 ppm
(+/- 100 kHz typ.)
F-type (75Ω)
NJR2845DHN N-type (50Ω)
NJR2845DSF +/- 3 ppm
(+/- 30 kHz typ.)
F-type (75Ω)
NJR2845DSN N-type (50Ω)
NJR2845DUF +/- 1 ppm
(+/- 10 kHz typ.)
F-type (75Ω)
NJR2845DUN N-type (50Ω)
NJR2845DVF +/- 0.5 ppm
(+/- 5 kHz typ.)
F-type (75Ω)
NJR2845DVN N-type (50Ω)
