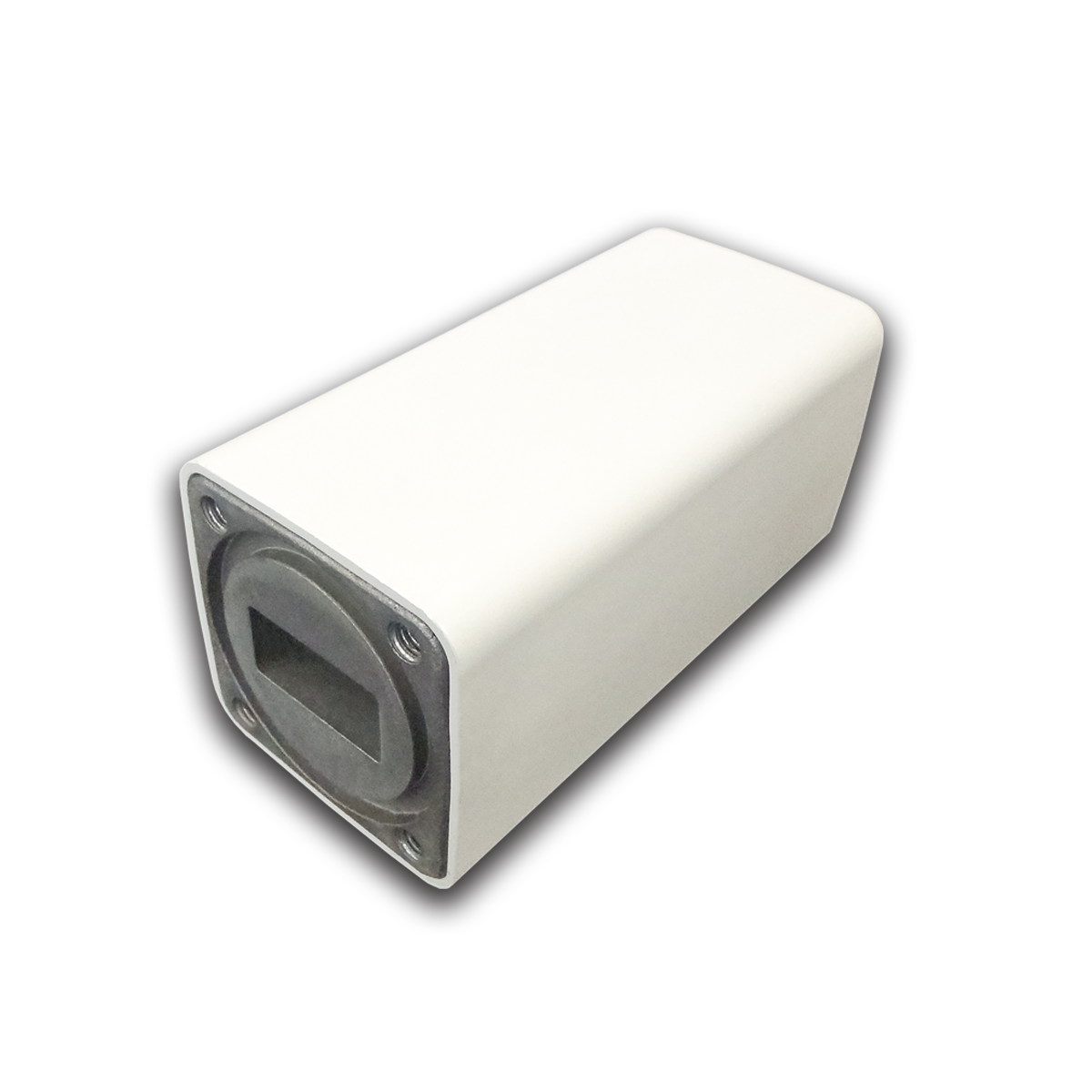

NJR2845ASN Ku-band PLL LNB | VSATPlus
NJR2845ASN Ku-band PLL LNB | VSATPlus
Sale
Sold out
Features
Frequency Organization
- RF Frequency: 10.95 to 11.7 GHz
- IF Frequency: 950 to 1,700 MHz
- LO Frequency: 10.0 GHz
Low Noise Performance
- Noise Figure (NF): 0.8 dB typ., 1.0 dB max.
LO Frequency Stability Line-up
- L-type: +/- 50 ppm (+/- 500 kHz typ.)
- H-type: +/- 10 ppm (+/- 100 kHz typ.)
- S-type: +/- 3 ppm (+/- 30 kHz typ.)
- U-type: +/- 1 ppm (+/- 10 kHz typ.)
- V-type: +/- 0.5 ppm (+/- 5 kHz typ.)
Small Size & Light Weight
- Weight: F-type 210 g / N-type 240 g
Others
- RoHS Compliance
Series Line-up
Model No. | RF Frequency | ReferencE-type | LO Frequency Stability | IF Connector |
NJR2845ALF | 10.95 to 11.7 GHz | Internal Ref. | +/- 50 ppm (+/- 500 kHz typ.) |
F-type (75Ω) |
---|---|---|---|---|
NJR2845ALN | N-type (50Ω) | |||
NJR2845AHF | +/- 10 ppm (+/- 100 kHz typ.) |
F-type (75Ω) | ||
NJR2845AHN | N-type (50Ω) | |||
NJR2845ASF | +/- 3 ppm (+/- 30 kHz typ.) |
F-type (75Ω) | ||
NJR2845ASN | N-type (50Ω) | |||
NJR2845AUF | +/- 1 ppm (+/- 10 kHz typ.) |
F-type (75Ω) | ||
NJR2845AUN | N-type (50Ω) | |||
NJR2845AVF | +/- 0.5 ppm (+/- 5 kHz typ.) |
F-type (75Ω) | ||
NJR2845AVN | N-type (50Ω) |
