VSATplus International Inc.

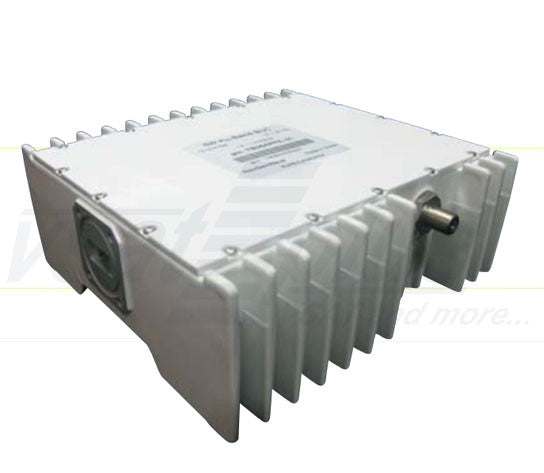

Nexgenwave TB36DPF(N)E-01 4W Ku-Band D-Series BUC

1 In stock

4W Ku-Band BUCs

Nexgenwave

VSATTM Series are ideal for Broadband VSAT RF terminal.  36dBm output power Optional Internal Reference source RoHS Compliant Small Size & Mass Power Consumption : 40W Max. Two years Warranty Ku-band 4W D Series BUC Model Model Number Description RF Band IF Band Output Power TB36DPFE-01 4W Ku-band BUC, D...
Input Type *
-
+
USD 1,190.00
USD 1,190.00
Add to wishlist

VSATTM Series are ideal for Broadband VSAT RF terminal.

  • 36dBm output power
  • Optional Internal Reference source
  • RoHS Compliant
  • Small Size & Mass
  • Power Consumption : 40W Max.
  • Two years Warranty
  • Ku-band 4W D Series BUC Model

    Model Number

    Description

    RF Band

    IF Band

    Output Power

    TB36DPFE-01

    4W Ku-band BUC, D Series, F/N Type

    12.25-12.75 (GHz)

    950-1450 (MHz)

    +36dBm

    TB36DPNE-01



    Mechanical Drawing

    Specification

    Parameters

    Specifications

    Input Characteristics

    Frequency Range

    D : 950 ~ 1450 MHz

    Impedance

    75 Ohm , 50 Ohm

    VSWR

    2 : 1

    Interface

    F-Type or N-Type

    Output Characteristics


    Frequency Range

    D : 12.25 ~ 12.75 GHz (LO Freq = 11.3GHz)

    Output Power @ 1dB G.C.P (Over temp.)    Min.

    36dBm

    VSWR

    2 : 1

    Interface

    WR75G

    Transfer Characteristics


    Frequency Sense

    Non-inverted

    Linear Gain                            Typical

    58 dB

    Gain Variation                    Over 54 MHz

      1.5 dB

    Over the whole Bandwidth
    Over Operation Temperature

     4 dB
       4 dB

    Spurious                              In band

     -60dBc

    Out of band

      -50dBc

    Phase Noise (Typ.)                      100Hz

      -65dBc/Hz

    1KHz
    10KHz
    100KHz

      -75dBc/Hz
      -85dBc/Hz    -95dBc/Hz

    Miscellaneous


    External Reference            Input Frequency

    10MHz

    Input Power Phase Noise

    -5 to +5dBm@Input Port
    -125dBc/Hz max.@ 100Hz offset
    -135dBc/Hz max.@ 1kHz offset
    -140dBc/Hz max.@ 10kHz offset

    Operating Voltage DC

    15 ~ 24 VDC

    Power Consumption                      Max.

    40W

    Operating Temperature

    -40 to +55

    Humidity

    Up to 100%

    Internal Function

    Lock Detector shuts off Tx in case of LO unlocked

    Dimensions / Weight

    176.1 x 161.5 x 65 (mm) / 1.8 Kg
