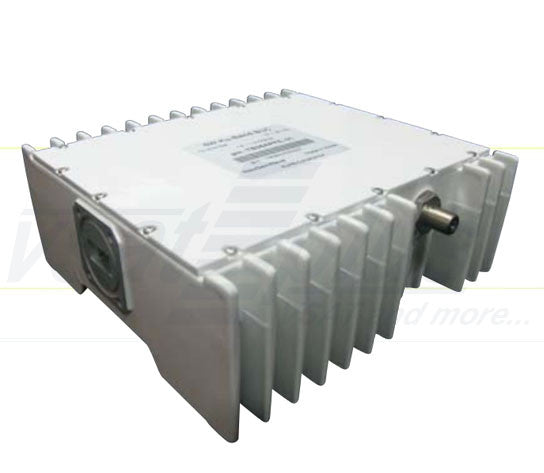

Nexgenwave TB36BPF(N)E-01 4W Low Ku-Band BUC

Nexgenwave TB36BPF(N)E-01 4W Low Ku-Band BUC

4W Ku-Band BUCs

VSATTM Series are ideal for Broadband VSAT RF terminal.  36dBm output power Optional Internal Reference source RoHS Compliant Small Size & Mass Power Consumption : 35W Max. Two years Warranty Ku-band 4W Low BUC Model Model Number Description RF Band...

  • Category: All Products, Block Upconverter BUC, Featured products, Ku-Band Block Upconverter BUC, Nexgenwave, YEAR END SALE 2018!

VSATTM Series are ideal for Broadband VSAT RF terminal.

  • 36dBm output power
  • Optional Internal Reference source
  • RoHS Compliant
  • Small Size & Mass
  • Power Consumption : 35W Max.
  • Two years Warranty
  • Ku-band 4W Low BUC Model

    Model Number

    Description

    RF Band

    IF Band

    Output Power

    TB36BPFE-01

    4W Low Ku-band BUC,  F/N Type

    13.75-14.25 (GHz)

    950-1450 (MHz)

    +36dBm

    TB36BPNE-01



    Mechanical Drawing

    Specification

    Parameters

    Specifications

    Input Characteristics

    Frequency Range

    B : 950 ~ 1450 MHz

    Impedance

    75 Ohm , 50 Ohm

    VSWR

    2 : 1

    Interface

    F-Type or N-Type

    Output Characteristics


    Frequency Range

    B : 13.75 ~ 14.25 GHz (LO Freq = 12.80GHz)

    Output Power @ 1dB G.C.P (Over temp.)    Min.

    36dBm

    VSWR

    2 : 1

    Interface

    WR75G

    Transfer Characteristics


    Frequency Sense

    Non-inverted

    Linear Gain                            Typical

    58 dB

    Gain Variation                    Over 54 MHz

      1.5 dB

    Over the whole Bandwidth
    Over Operation Temperature

     4 dB
       4 dB

    Spurious                              In band

     -60dBc

    Out of band

      -50dBc

    Phase Noise (Typ.)                      100Hz

      -65dBc/Hz

    1KHz
    10KHz
    100KHz

      -75dBc/Hz
      -85dBc/Hz    -95dBc/Hz

    Miscellaneous


    External Reference            Input Frequency

    10MHz

    Input Power Phase Noise

    -5 to +5dBm@Input Port
    -125dBc/Hz max.@ 100Hz offset
    -135dBc/Hz max.@ 1kHz offset
    -140dBc/Hz max.@ 10kHz offset

    Operating Voltage DC

    15 ~ 24 VDC

    Power Consumption                      Max.

    35W

    Operating Temperature

    -40 to +55

    Humidity

    Up to 100%

    Internal Function

    Lock Detector shuts off Tx in case of LO unlocked

    Dimensions / Weight

    176.1 x 161.5 x 65 (mm) / 1.8 Kg
