Nexgenwave TA37BPF(N)E-01 5W Palapa C-Band BUC

Nexgenwave TA37BPF(N)E-01 5W Palapa C-Band BUC

5W C-Band BUCs

VSAT™ Series are ideal for Broadband VSAT RF terminal. 33dBm(2W) / 37dBm(5W) output power RoHS Compliant Optional Internal Reference source Low DC Power Consumption : 55W Max. (5W) Two years Warranty Full (Std+Palapa) band and Full (Palapa+Insat ) band available Palapa...

  • Category: All Products, Block Upconverter BUC, C-Band Block Upconverter BUC, Nexgenwave

VSAT™ Series are ideal for Broadband VSAT RF terminal.

  • 33dBm(2W) / 37dBm(5W) output power
  • RoHS Compliant
  • Optional Internal Reference source
  • Low DC Power Consumption : 55W Max. (5W)
  • Two years Warranty
  • Full (Std+Palapa) band and Full (Palapa+Insat ) band available

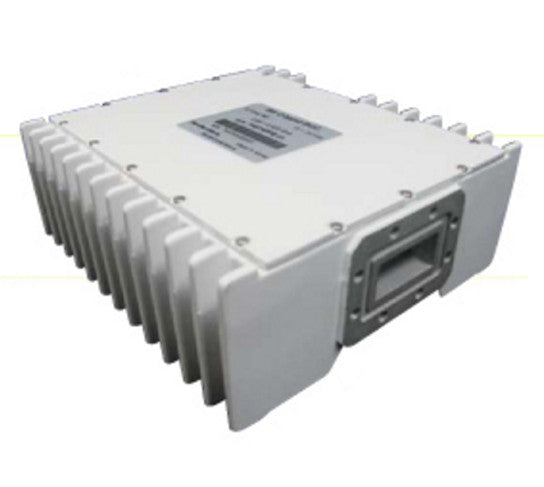

Palapa C-Band 5W BUC Model

Model Number Description RF Band(GHz) IF Band(MHz) Output Power
TA37BPFE-01 5W Palapa C Band BUC,
Std, F/N Type
6.425-6.725 1150-1450 +37dBm
TA37BPNE-01

MECHANICAL DRAWING

SPECIFICATIONS

Parameters

Specifications

Input Characteristics

Frequency Range

B  : 1150 ~ 1450 MHz



Impedance

75 Ohm , 50 Ohm

VSWR

2 : 1

Interface

F-Type or N-Type

Output Characteristics

Frequency Range

B  : 6.425 ~ 6.725 GHz (LO-5.275 GHz)



Output Power @ 1dB G.C.P (Over temp.)    Min.

33dBm (2W) / 37dBm(5W)

VSWR

2 : 1

Interface

CPR137G

Transfer Characteristics

Frequency Sense

Non-inverted

Linear Gain                            Typical

58 dB (2W) / 61dB(5W)

Gain Variation                     Over 54 MHz

  1.5 dB

Over the whole Bandwidth Over Operation Temperature

   4 dB  4 dB

Spurious                              In band

 -60dBc

Out of band

  -50dBc

Phase Noise (Typ.)                      100Hz

  -65dBc/Hz

1KHz

10KHz

100KHz

  -75dBc/Hz

  -85dBc/Hz    -95dBc/Hz

Miscellaneous

External Reference           Input Frequency

10MHz

Input Power Phase Noise

-5 to +5dBm@Input Port

-125dBc/Hz max.@ 100Hz offset -135dBc/Hz max.@ 1kHz offset

-140dBc/Hz max.@ 10kHz offset

Operating Voltage DC

15 ~ 24 VDC

Power Consumption                      Max.

25W(2W) / 55W(5W)

Operating Temperature

-40 to +55 ℃

Humidity

Up to 100%

Internal Function

Lock Detector shuts off Tx  in case of LO unlocked

Dimensions  /  Weight

176.1 X 161.5 X 65 (mm)  /  1.8 Kg
