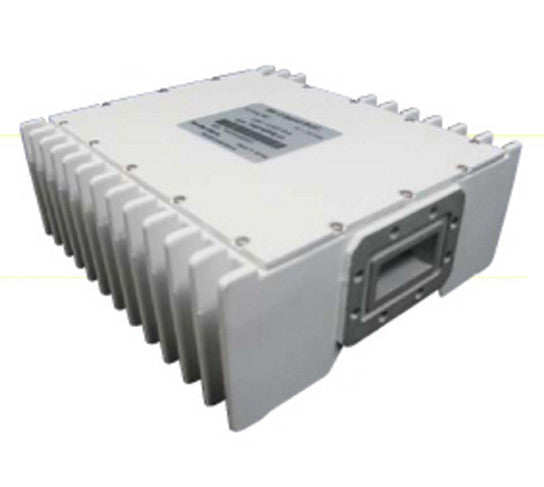

Nexgenwave TA37APFE/NE-01 5W Std. C-Band BUC

Nexgenwave TA37APFE/NE-01 5W Std. C-Band BUC

5W C-Band BUCs

VSAT™ Series are ideal for Broadband VSAT RF terminal. 37dBm output power Optional Internal Reference Source RoHS Compliance Small Size & Mass Low DC Power Consumption - 55W Max Two years Warranty C-Band 5W BUC Model Model Number Description RF...

USD 400.00
  • Category: All Products, Block Upconverter BUC, C-Band Block Upconverter BUC, Clearance Stocks, Nexgenwave

VSAT™ Series are ideal for Broadband VSAT RF terminal.

  • 37dBm output power
  • Optional Internal Reference Source
  • RoHS Compliance
  • Small Size & Mass
  • Low DC Power Consumption - 55W Max
  • Two years Warranty

C-Band 5W BUC Model

Model Number Description RF Band(GHz) IF Band(MHz) Output Power
TA37APFE-01 5W C Band BUC,
Std, F/N Type
5.85-6.425 950-1525 +37dBm
TA37APNE-01

MECHANICAL DRAWING



SPECIFICATIONS
