Nexgenwave Series SPL 5750 High Stability Ku-Band DRO LNB Model No. Input Freq. (GHz) Output Freq. (MHz) L.O. & Stability (Over Temp.) 5750 12.25 – 12.75 950 – 1450 11.3 GHz / +/- 500 KHz   Mechanical Drawing Specification Noise...

USD 14.00
  • Category: All Products, Clearance Stocks, Ku-Band LNBs, Low Noise Block LNB, Nexgenwave

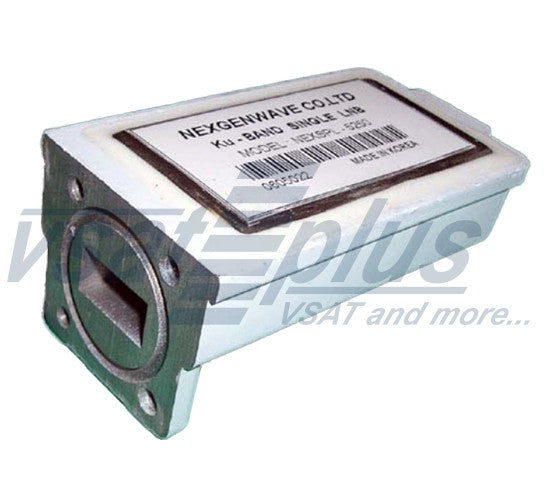

Nexgenwave Series SPL 5750 High Stability Ku-Band DRO LNB

Model No.

Input Freq. (GHz)

Output Freq. (MHz)

L.O. & Stability (Over Temp.)

5750

12.25 – 12.75

950 – 1450

11.3 GHz / +/- 500 KHz



Mechanical Drawing

Specification

Noise figure (@ +25 C)

Input VSWR

0.6 to 0.9dB max.

2.5 : 1 typ.

Image rejection

40 dB min.

Conversion gain

55 dB typ.

output VSWR

Gain flatness

2 : 1 typ.

6 dBp-p max.

Gain ripple (@per channel)

+/- 0.75 dB max.

1dB gain compression point

Output impedance

0 dBm min.

75 ohms

Leakage (@ input port)

Phase noise

-60 dBm max.

-80 dBc/Hz (@ 10 KHz)

-95 dBc/Hz (@100KHz)

-110 dBc/Hz (@1MHz)

Power supply

Required current

Operating temperature

Storage temperature Relative

Humidity

Input waveguide flange

IF output connector

Weight

+12 to +24V DC 150 mA max.

150 mA max.

-300 to +60C

-40 C to +80 C

0% to 95% RH

WR- 75

F Type female

190 g
