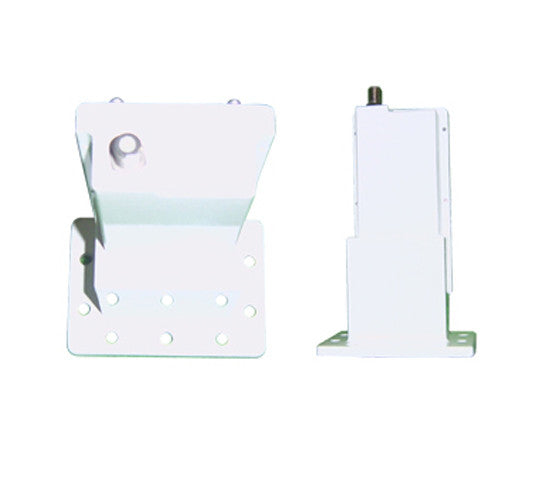

Nexgenwave NEX-300 Series C-Band Int. Ref. PLL LNB

Nexgenwave NEX-300 Series C-Band Int. Ref. PLL LNB

C-Band PLL LNBs

Line Up Model No. Input Freq. (GHz) Output Freq. (MHz) L.O. Freq. & Stability NEX-305 3.4 – 4.2 950 – 1750 5.15 GHz +/- 5 KHz NEX-310 3.4 – 4.2 950 – 1750 5.15 GHz +/- 10 KHz NEX-325 3.4 –...

  • Category: All Products, C-Band LNBs, Clearance Stocks, Nexgenwave

Line Up

Model No.

Input Freq. (GHz)

Output Freq. (MHz)

L.O. Freq. & Stability

NEX-305

3.4 – 4.2

950 – 1750

5.15 GHz +/- 5 KHz

NEX-310

3.4 – 4.2

950 – 1750

5.15 GHz +/- 10 KHz

NEX-325

3.4 – 4.2

950 – 1750

5.15 GHz +/- 25 KHz



Mechanical Drawing

SPECIFICATIONS
